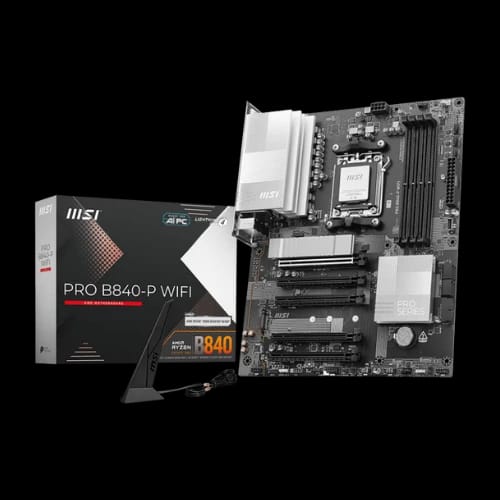

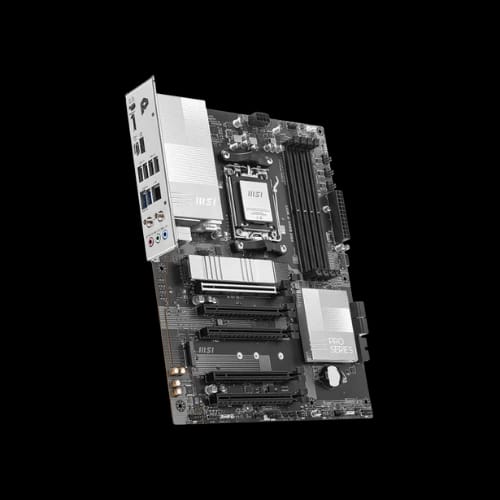

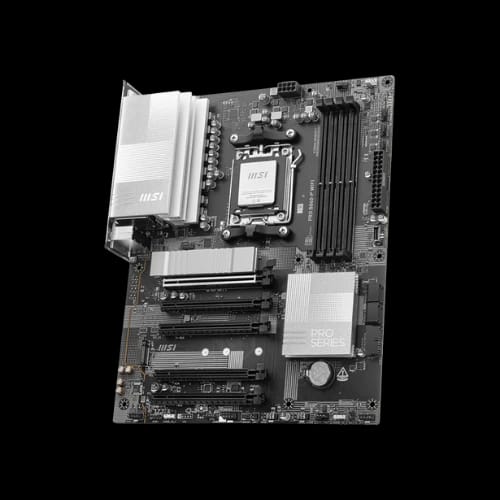

MSI PRO B840-P WIFI AM5 ATX Motherboard

Basic Information

ModelAMD B840 ATX MotherboardForm FactorATX (243.84mm × 304.8mm)Operating System SupportWindows® 11 64-bit

Processor (CPU)

Socket TypeAMD Socket AM5Supported CPUsAMD Ryzen™ 9000 / 8000 / 7000 Series Desktop ProcessorsChipsetAMD B840

Memory

Slots4 × DDR5 UDIMMMaximum CapacityUp to 256 GBSupported Speeds (MT/s)DDR5 8000 – 5600 (OC) / 5600 – 4800 (JEDEC)Max Overclocking Frequency (Ryzen™ 9000 Series)1DPC 1R – 8000+ • 1DPC 2R – 6400 • 2DPC 1R – 6400 • 2DPC 2R – 5600Memory FeaturesSupports AMD POR & JEDEC Speed • Supports AMD EXPO™ • Supports Memory Overclocking
