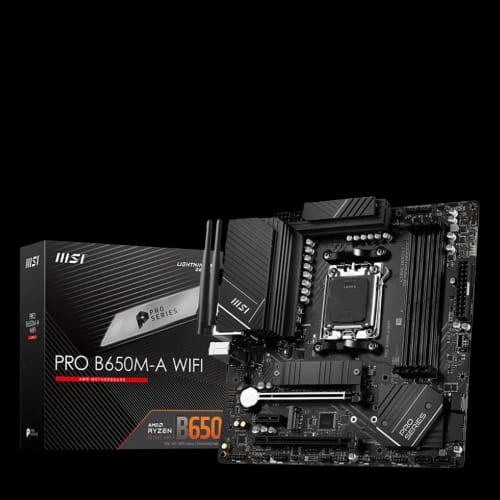

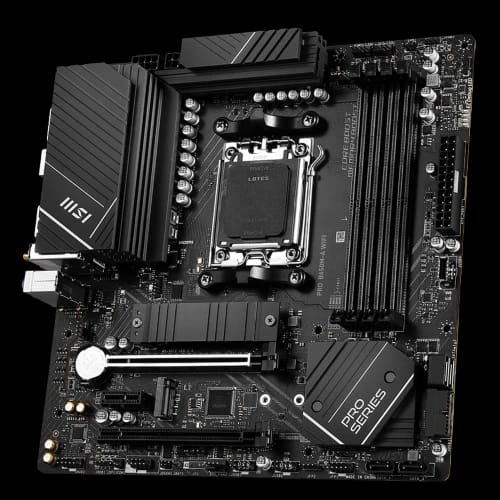

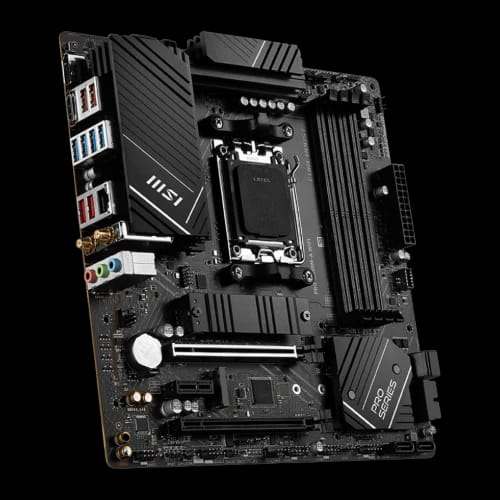

MSI PRO B650M-A WIFI DDR5 AM5 m-ATX Motherboard

Basic Information

Supported CPUAMD Ryzen 9000 / 8000 / 7000 SeriesSocketAM5ChipsetAMD B650Form FactorMicro-ATX (243.84 × 243.84 mm)

Memory

TypeDDR5Slots4 DIMMSupported Speeds6400+(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800(JEDEC)Max Overclock 1DPC 1RUp to 6400+ MHzMax Overclock 1DPC 2RUp to 5800+ MHzMax Overclock 2DPC 1RUp to 6000+ MHzMax Overclock 2DPC 2RUp to 4000+ MHzChannelDual-ChannelECCNon-ECC, unbufferedEXPOSupportedMaximum Capacity256GB

Graphics Output

HDMI1× HDMI 2.1 (4K 60Hz)DisplayPort1× DP 1.4 (4K 60Hz)

Expansion Slots

PCI-E x16 Slots2×PCI-E x1 Slots1×PCI_E1PCIe 4.0 x16 (CPU)PCI_E2PCIe 3.0 x1 (Chipset)PCI_E3PCIe 4.0 x4 (Chipset)

Storage

M.2 Slots2× (PCIe 4.0 x4, 2280/2260)SATA Ports4× SATA 6Gb/sRAID (SATA)RAID 0 / 1 / 10RAID (NVMe)RAID 0 / 1

USB Ports

Front4× USB 2.0, 2× USB 3.2 Gen1 Type-A, 1× USB 3.2 Gen2 Type-CRear4× USB 3.2 Gen1 Type-A, 4× USB 3.2 Gen2 Type-A

Audio

CodecRealtek ALC897Channels7.1-Channel HD Audio

Network

LANRealtek 8125BG 2.5G LANWirelessWi-Fi 6E moduleBluetooth5.2
