Question 1

Is the MSI MAG B650 TOMAHAWK WIFI compatible with AMD Ryzen 9000 Series processors?

Accepted Answer

Yes, the MSI MAG B650 TOMAHAWK WIFI supports AMD Ryzen 9000, 8000, and 7000 Series processors on the AM5 socket. A BIOS update may be needed for newer CPUs depending on the board's manufacturing date.

Question 2

What DDR5 memory speeds does the MSI MAG B650 TOMAHAWK WIFI support?

Accepted Answer

It supports DDR5 from 4800 MHz (JEDEC) up to 6600+ MHz via overclocking, across four DIMM slots with a maximum capacity of 128GB.

Question 3

What is the maximum RAM capacity on the AM5 socket with a B650 chipset?

Accepted Answer

The B650 platform supports up to 128GB of DDR5 across four DIMM slots — sufficient for video editing, rendering, and heavy multitasking workloads.

Question 4

How many M.2 NVMe slots does the B650 TOMAHAWK WIFI have?

Accepted Answer

Three M.2 slots, all PCIe 4.0 x4. Two run from the CPU directly; one from the chipset. All support 2280 and 2260 form factor drives.

Question 5

Does the AMD B650 chipset support PCIe 5.0?

Accepted Answer

No. B650 runs PCIe 4.0 x16 for the primary GPU slot. Full PCIe 5.0 support requires the X670E chipset. B650 remains a strong mid-range AM5 platform.

Question 6

What Wi-Fi standard does the AMD Wi-Fi 6E module support?

Accepted Answer

It supports 802.11ax across 2.4GHz, 5GHz, and 6GHz bands with MU-MIMO and up to 160MHz bandwidth — significantly faster and less congested than Wi-Fi 5.

Question 7

What Bluetooth version does the B650 TOMAHAWK WIFI include?

Accepted Answer

Bluetooth 5.2, pre-installed alongside the AMD Wi-Fi 6E module in the M.2 Key-E slot. Compatible with modern wireless peripherals including headsets, keyboards, and controllers.

Question 8

What wired LAN speed does the Realtek RTL8125B controller provide?

Accepted Answer

2.5Gbps — 2.5 times faster than standard Gigabit LAN. Ideal for low-latency gaming, NAS connectivity, and large local file transfers.

Question 9

How many fan headers does the B650 TOMAHAWK WIFI have?

Accepted Answer

Nine total: one CPU fan, one pump fan for AIO coolers, and six system fan headers. No separate fan hub needed for most custom cooling builds.

Question 10

What RAID configurations are supported for NVMe and SATA storage?

Accepted Answer

SATA supports RAID 0, 1, and 10. NVMe M.2 supports RAID 0 and 1. Both performance striping and data redundancy configurations are covered.

Question 11

Does the B650 TOMAHAWK WIFI have EZ Debug LEDs for troubleshooting?

Accepted Answer

Yes. Four EZ Debug LEDs indicate faults across CPU, DRAM, VGA, and Boot — instantly pinpointing failed components during POST without additional diagnostic tools.

Question 12

What audio codec does the B650 TOMAHAWK WIFI use?

Accepted Answer

Realtek ALC4080 with 7.1-channel HD audio, 32-bit/384 kHz front panel playback, and S/PDIF output — well above average for a mid-range motherboard.

Question 13

Is the MSI MAG B650 TOMAHAWK WIFI suitable for a content creation workstation in Bangladesh?

Accepted Answer

Yes. Three PCIe 4.0 M.2 slots, DDR5-6600+ support, 2.5Gbps LAN, and quality audio make it a strong workstation board. Available at PCB Store Bangladesh with full after-sales support.

Question 14

Does the B650 TOMAHAWK WIFI support TPM 2.0 for Windows 11?

Accepted Answer

Yes. A dedicated TPM 2.0 pin header is included, covering Windows 11 requirements, BitLocker encryption, and Secure Boot compatibility out of the box.

Question 15

What is the warranty on the B650 TOMAHAWK WIFI and is support available in Bangladesh?

Accepted Answer

3-year manufacturer warranty. PCB Store Bangladesh handles warranty claims and technical support directly — no third-party routing required.

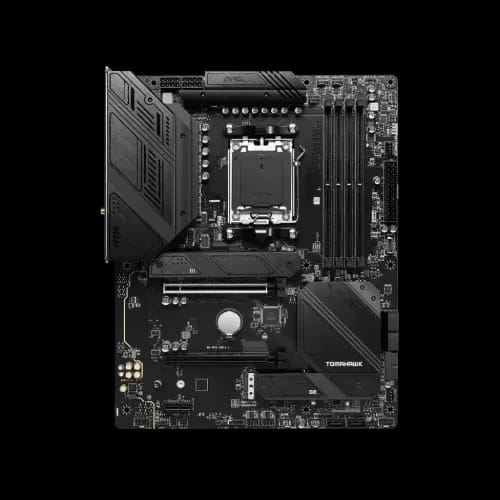

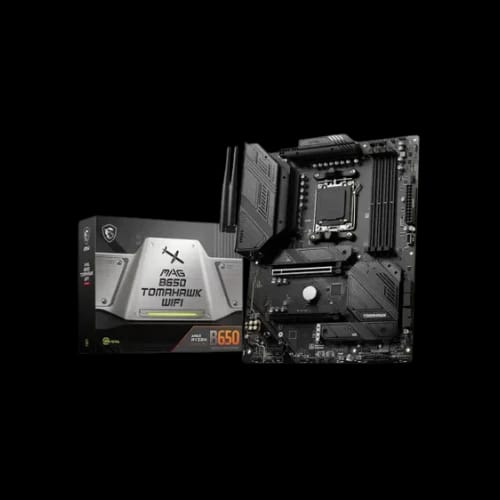

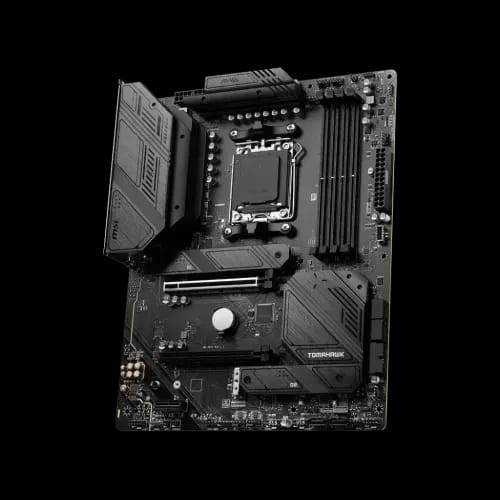

MSI MAG B650 TOMAHAWK WIFI AM5 ATX Motherboard

Key Features

Technical Specifications

Platform

Memory

Storage

Expansion Slots

Networking

Display Output

USB — Rear I/O

USB — Front Headers

Audio

Cooling Headers

RGB Headers

Diagnostics & Security

Warranty

FAQs

Is the MSI MAG B650 TOMAHAWK WIFI compatible with AMD Ryzen 9000 Series processors?

What DDR5 memory speeds does the MSI MAG B650 TOMAHAWK WIFI support?

What is the maximum RAM capacity on the AM5 socket with a B650 chipset?

How many M.2 NVMe slots does the B650 TOMAHAWK WIFI have?

Does the AMD B650 chipset support PCIe 5.0?

What Wi-Fi standard does the AMD Wi-Fi 6E module support?

What Bluetooth version does the B650 TOMAHAWK WIFI include?

What wired LAN speed does the Realtek RTL8125B controller provide?

How many fan headers does the B650 TOMAHAWK WIFI have?

What RAID configurations are supported for NVMe and SATA storage?

Does the B650 TOMAHAWK WIFI have EZ Debug LEDs for troubleshooting?

What audio codec does the B650 TOMAHAWK WIFI use?

Is the MSI MAG B650 TOMAHAWK WIFI suitable for a content creation workstation in Bangladesh?

Does the B650 TOMAHAWK WIFI support TPM 2.0 for Windows 11?

What is the warranty on the B650 TOMAHAWK WIFI and is support available in Bangladesh?
