Technical Specifications
General Information
| Brand | Kingston |
| Series | FURY Renegade |

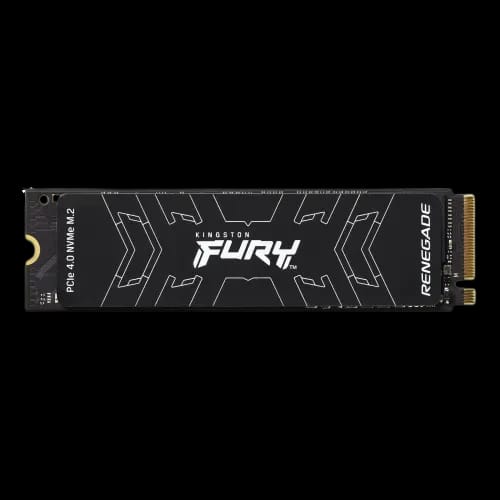

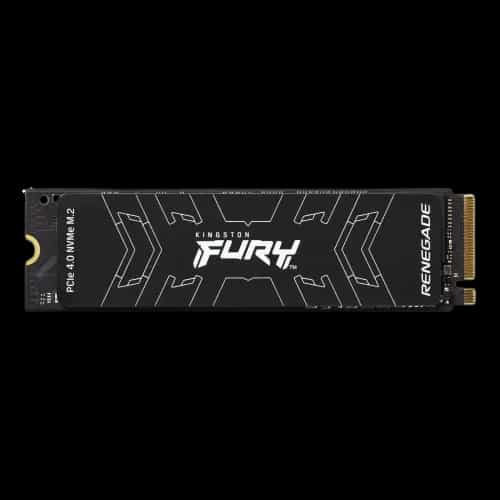

| Model | FURY Renegade 2TB |
| Type | NVMe M.2 Solid State Drive |
| Interface | PCIe 4.0 x4 (NVMe 1.4) |
| Form Factor | M.2 2280 |
| Capacity | 2TB |
| NAND Flash Type | 3D TLC |
| Controller | Phison E18 |
| DRAM Cache | Yes |
| Color | Black |
Performance
| Sequential Read Speed (MB/s) | Up to 7,300 MB/s |
| Sequential Write Speed (MB/s) | Up to 7,000 MB/s |
| Random Read (4K IOPS) | Up to 1,000,000 IOPS |
| Random Write (4K IOPS) | Up to 1,000,000 IOPS |
| TBW (Total Bytes Written) | 2.0 PBW (2,000 TBW) |
| MTBF | 2,000,000 Hours |
Reliability & Endurance
| Data Protection | End-to-End Data Path Protection |
| Error Correction | LDPC ECC with Smart Data Recovery |
| Wear Leveling | Static & Dynamic Wear Leveling |
| Thermal Control | Dynamic Smart Thermal Throttling |
| SMART Support | Yes |
Physical Specifications
| Dimensions | 80 mm × 22 mm × 2.21 mm |
| Weight | 7 g |
| Form | Single-Sided PCB |
| Heatsink Option | Available in Heatsink and Heat Spreader Variants |
Environmental Conditions
| Operating Temperature | 0°C – 70°C |
| Storage Temperature | -40°C – 85°C |
| Vibration (Operating) | 2.17G peak (7–800Hz) |
Warranty & Origin
| Duration | 5 Years |
