Technical Specifications
General Information
| Brand | Kimtigo |

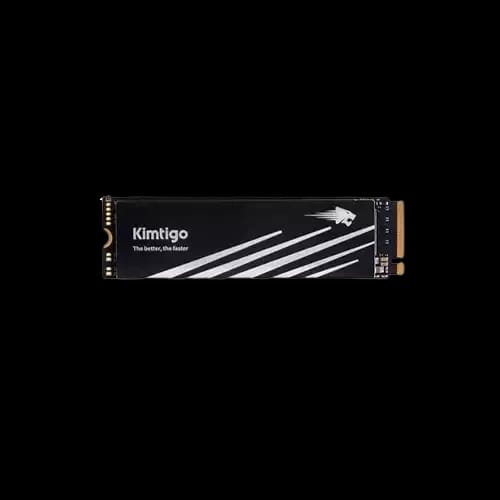

| Model | TP5000 |
| Type | NVMe M.2 Solid State Drive |
| Interface | PCIe 4.0 x4, NVMe 1.4 |
| Form Factor | M.2 2280 |
| Capacity | 512GB |
| Color | Black |
Performance
| Sequential Read Speed (MB/s) | Up to 4800 MB/s |
| Sequential Write Speed (MB/s) | Up to 2700 MB/s |
| Random Read Speed (4K IOPS) | Up to 220K IOPS |
| Random Write Speed (4K IOPS) | Up to 480K IOPS |
| Protocol | NVMe 1.4 |
Reliability & Endurance
| TBW (Total Bytes Written) | 300 TB |
| Data Integrity | Advanced ECC & Bad Block Managemen |
| Wear Leveling | Supported |
| MTBF (Mean Time Between Failures) | Over 1,200,000 Hours (Typical for Series) |
Physical Specifications
| Dimensions | 22 ±0.15 mm × 80 ±0.15 mm |
| Form | Single-Sided PCB |
| Weight | <10 g |
Environmental Conditions
| Working Temperature | 0°C to 70°C |
| Storage Temperature | Storage Temperature -40°C to 85°C (Typical for Series) |
| Humidity | 5% – 95% (Non-Condensing) |
| Shock Resistance | 100 G / 6 ms (Typical for Series) |
| Vibration Resistance | 3.1 GRMS (2–500Hz) |
Certifications
| Compliance | CE, FCC, RoHS, cTUV Certified |
Warranty Information
| Warranty | 03 Years |
