Technical Specifications
General Information

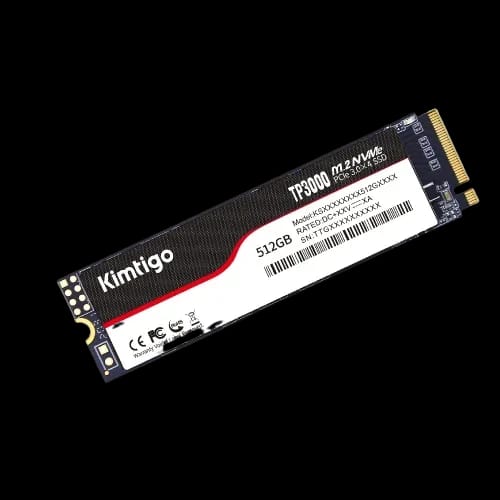

| Brand | Kimtigo |
| Model | TP3000 |
| Type | NVMe M.2 Solid State Drive |
| Interface | PCIe 3.0 x4 |
| Form Factor | M.2 2280 |
| Capacity | 512GB |
| Flash Type | 3D TLC NAND |
| Controller | Kimtigo Custom Controller |
Performance
| Sequential Read Speed (MB/s) | Up to 2,100 MB/s |
| Sequential Write Speed (MB/s) | Up to 1,800 MB/s |
| Random Read Speed (4K IOPS) | Up to 190K IOPS |
| Random Write Speed (4K IOPS) | Up to 290K IOPS |
| Transmission Speed | PCIe 3.0 (Theoretical bandwidth 32Gb/s) |
Reliability & Endurance
| TBW (Total Bytes Written) | 300 TB |
| MTBF (Mean Time Between Failures) | 1,200,000 Hours |
| Data Protection | Automatic Bad Block Replacement Management |
| Wear Leveling | Balanced Erase Algorithm Supported |
Physical Specifications
| Dimensions | 80 × 22 × 2.4 mm |
| Weight | Less than 10 g |
| Form | Single-Sided PCB |
Environmental Conditions
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% – 95% (Non-Condensing) |
| Shock Resistance | 100 G / 6 ms |
| Vibration Resistance | 3.1 GRMS (2–500Hz) |
Warranty & Origin
| Warranty | 3 Years Official Warranty |
| Country of Origin | China |
| Country of Manufacture | China |
