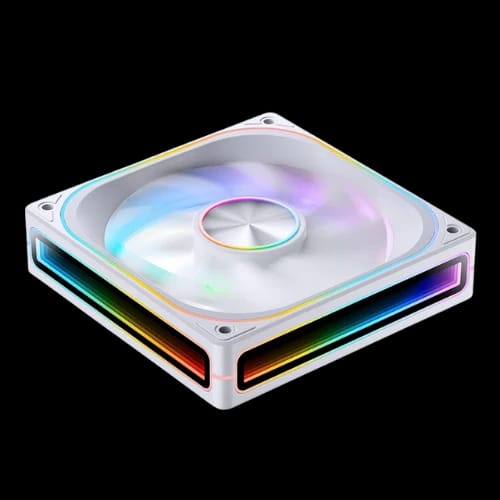

jonsbo za 120w pwm argb 120mm casing fan white main

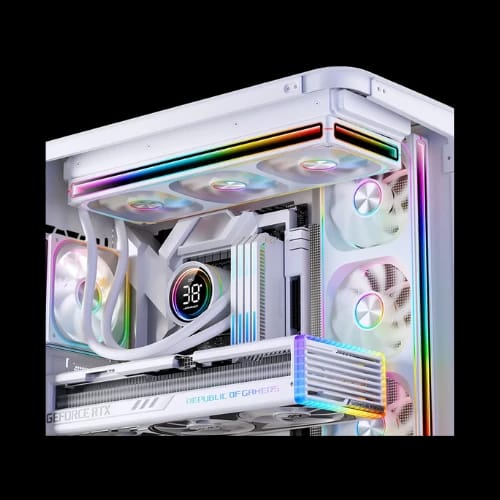

jonsbo za 120w pwm argb 120mm casing fan white installed

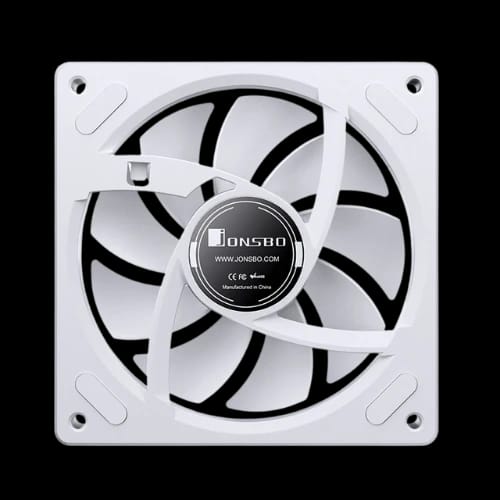

jonsbo za 120w pwm argb 120mm casing fan white back
/ PC Components / Casing Fan / JONSBO / JONSBO ZA-120W PWM ARGB 120mm Casing Fan (White)

JONSBO ZA-120W PWM ARGB 120mm Casing Fan (White)

Key Features

  • Model Name: JONSBO ZA-120W
  • Customizable ARGB Lighting
  • High-Speed Performance
  • Quiet Operation
  • Long Durability
  • Efficient Power Use

Share:

Technical Specifications

General

ModelJONSBO ZA-120W PWM ARGB 120mm

Physical

Dimension120mm (L) × 120mm (W) × 28mm (H)

Performance

Speed700–2400 RPM ±10%Air Flow21.46 – 62.40 CFMStatic Pressure0.49 – 2.46 mmH₂ONoise Level21.3 – 37.3 dB(A)

Electrical

VoltageFAN 12V, LED 5VCurrentFAN 0.22A, LED 0.71AInput PowerFAN 2.64W, LED 3.55W

Reliability

MTTF≥ 20,000 hours

Connectivity

ConnectorPWM 4-Pin, ARGB 3-Pin

Warranty

Warranty1-Year Limited Warranty

Product Description

JONSBO ZA-120W PWM ARGB 120mm Casing Fan (White) – The Ultimate Cooling Solution for Your PC Build

Are you tired of your PC overheating or struggling with poor airflow? The JONSBO ZA-120W PWM ARGB 120mm Casing Fan (White) provides a solution that not only boosts airflow but also enhances the aesthetics of your build. Say goodbye to thermal throttling and hello to efficient, quiet cooling.

Product Overview: JONSBO ZA-120W PWM ARGB 120mm Casing Fan

When it comes to improving your PC’s cooling system, few options deliver the performance and visual appeal of the JONSBO ZA-120W PWM ARGB 120mm Casing Fan (White). Designed with a high-performance motor and an RGB lighting system, this fan is built to keep your system running smoothly while also offering stunning aesthetics.

The JONSBO ZA-120W operates at an impressive speed range of 700 to 2400 RPM, delivering airflows ranging from 21.46 CFM to 62.40 CFM. With its PWM (Pulse Width Modulation) control and ARGB (Addressable RGB) lighting, this fan ensures optimal cooling performance and customizable lighting effects to match your system’s design.

Key Features and Benefits

  • Customizable RGB Lighting: With ARGB integration, this fan lets you personalize the lighting to match your system’s theme. Adjust your lighting effects with ease using compatible RGB controllers.
  • High-Speed Performance: The JONSBO ZA-120W can achieve speeds up to 2400 RPM, making it suitable for both standard and high-performance setups. The fan offers an impressive static pressure range of 0.49-2.46 mmH2O to push air through dense heatsinks and radiators.
  • Quiet Operation: Despite its high airflow potential, the JONSBO ZA-120W operates quietly with a noise level ranging from 21.3 to 37.3 dB(A), so you can enjoy powerful cooling without unnecessary noise.
  • Durability: With a Mean Time To Failure (MTTF) rating of 20,000 hours, this fan is built to last, ensuring long-term reliability even under continuous use.

Performance and Power Efficiency

The JONSBO ZA-120W PWM ARGB 120mm Casing Fan (White) is engineered to deliver both power and efficiency. The fan’s DC12V voltage and low current draw (0.22A for the fan and 0.71A for the LED) ensure that it operates efficiently without drawing excessive power from your PSU. Whether you're building a gaming PC or a high-performance workstation, this fan won’t drain your resources.

Moreover, with an input power of just 2.64W for the fan and 3.55W for the LED, it balances performance with power consumption. The 700-2400 RPM speed range lets you achieve the right airflow and cooling power, even in more demanding setups.

Compatibility and Use Cases

The JONSBO ZA-120W PWM ARGB 120mm Casing Fan (White) is compatible with a wide variety of PC cases and cooling systems. Thanks to its 4-pin PWM connector for speed control and 3-pin ARGB connector for lighting control, you can easily integrate it into both newer and older PC builds.

  • Great for Gaming PCs: If you're a gamer looking for efficient airflow and a sleek design, the ZA-120W is the perfect choice.
  • Ideal for Overclocked Builds: With its high static pressure and customizable airflow, it can handle the cooling needs of overclocked systems.
  • PC Enthusiasts: Those who want to enhance the visual appeal of their builds can enjoy the RGB lighting effects without compromising on cooling efficiency.

Reliability and Warranty

The JONSBO ZA-120W PWM ARGB 120mm Casing Fan (White) boasts a solid build quality with a 20,000-hour MTTF, which ensures years of reliable service. Whether you're running the fan continuously or using it in bursts, you can rely on this fan to deliver optimal cooling performance for your PC.

PCB Store offers this fan with a warranty, providing peace of mind should any issues arise. You can count on JONSBO's reputation for quality, supported by PCB Store’s customer service.

Why Choose the JONSBO ZA-120W?

With a combination of performance, aesthetic appeal, and durability, the JONSBO ZA-120W PWM ARGB 120mm Casing Fan (White) stands out as an excellent choice for anyone seeking an effective cooling solution for their PC. Whether you're looking to enhance your gaming experience or simply keep your system cool during heavy workloads, this fan offers everything you need.

Ready to upgrade your cooling system? Get your JONSBO ZA-120W PWM ARGB 120mm Casing Fan (White) now at PCB Store in Bangladesh for competitive prices and fast shipping.

Delivery Charge Info

Inside Dhaka: 80

Outside Dhaka: 130

FAQs

  • How does the JONSBO ZA-120W PWM ARGB 120mm Casing Fan compare to other casing fans?

    The ZA-120W offers superior airflow and static pressure, making it ideal for high-performance setups. The addition of ARGB lighting also sets it apart from standard casing fans.

  • Is the JONSBO ZA-120W fan compatible with all PC cases?

    Yes, as long as your case supports 120mm fans, the ZA-120W is compatible. The PWM and ARGB connectors are standard, so it should fit most modern setups.

  • Can the RGB lighting be controlled?

    Yes, the ARGB lighting can be controlled via compatible RGB controllers, allowing you to customize the lighting effects based on your preferences.

  • Does the JONSBO ZA-120W fan make a lot of noise?

    No, the fan operates quietly, with noise levels ranging between 21.3 and 37.3 dB(A), depending on the speed setting.

  • What is the power consumption of the JONSBO ZA-120W fan?

    The fan uses 2.64W for the fan motor and 3.55W for the LED lighting, making it efficient while providing powerful cooling.

  • How long does the JONSBO ZA-120W fan last?

    The fan has a Mean Time To Failure (MTTF) of 20,000 hours, which means it will last for many years under normal usage.

  • What is the price of the JONSBO ZA-120W PWM ARGB 120mm Casing Fan in Bangladesh at PCB Store?

    Check PCB Store for the latest pricing information and availability of the JONSBO ZA-120W PWM ARGB 120mm Casing Fan in Bangladesh.

  • Is the JONSBO ZA-120W fan suitable for high-performance gaming PCs?

    Absolutely. The fan provides excellent airflow and static pressure, making it perfect for gaming systems that require efficient cooling.

  • Can I use this fan with my existing setup without needing additional components?

    Yes, the fan is compatible with most setups that support 120mm fans. All you need is an available PWM and ARGB header on your motherboard.
