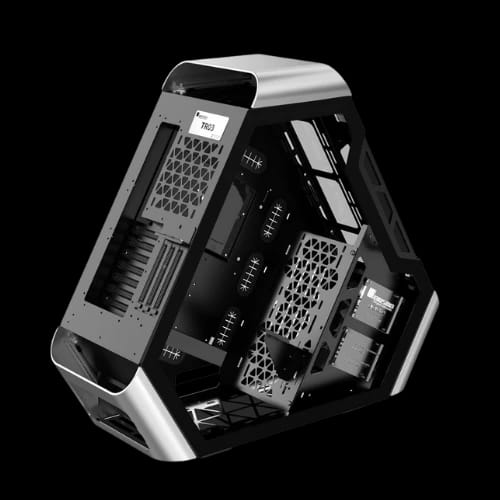

JONSBO TR03-G Glass Panel ATX Gaming Case (Silver)

Product Description

JONSBO TR03-G Glass Panel ATX Gaming Case (Silver)

Is Your Gaming Setup Suffering from Poor Airflow and Thermal Throttling? JONSBO TR03-G Glass Panel ATX Gaming Case Delivers Premium Build Quality.

Building a high-performance gaming rig demands more than just powerful components. Your processor and graphics card need proper cooling. The JONSBO TR03-G Glass Panel ATX Gaming Case in Silver offers a solution that combines aesthetic appeal with functional airflow management.

This premium chassis from JONSBO targets enthusiasts who refuse to compromise on build quality. PCB Store brings this exceptional case to Bangladesh. Gamers seeking professional-grade enclosures will find the TR03-G stands apart from conventional options.

JONSBO TR03-G Silver Glass Panel Specifications and Build Quality

The TR03-G features industrial-grade construction. The chassis frame uses 1.0+0.8MM steel plate foundation. Exterior triangular components utilize 4MM magnesium-aluminum alloy. Three 4MM tempered glass panels cover dual sides and front section.

Product dimensions measure 238mm width, 673mm height, and 595mm depth. The case weighs 15kg net, demonstrating substantial build integrity. This weight indicates serious construction, not flimsy materials.

Motherboard Compatibility:

• ITX form factor
• M-ATX boards
• Full ATX motherboards

The case supports seven PCI expansion slots. Graphics cards up to 320mm fit comfortably. Removing the airflow shield component extends clearance to 460mm.

Advanced Cooling Architecture in JONSBO TR03-G ATX Gaming Case

Thermal management separates good cases from great ones. The TR03-G delivers six potential fan mounting locations. Front panel accepts three 120mm fans on inner or outer walls. Bottom panel accommodates two 120mm units.

Standard configuration includes strategic fan placement:

• Top position: 1x120mm black-framed white-blade fan
• Bottom front corner: 1x120mm black-framed white-blade fan

Radiator Support Options:

• Front: 360/240/120mm configurations
• Bottom: 240mm radiators
• Rear: 120mm cooling solutions

CPU cooler height reaches 175mm maximum. This clearance handles tower-style air coolers and most AIO pump blocks. The middle partition supports two additional 120mm fans for targeted airflow.

Storage Flexibility and Drive Bay Configuration

Modern builds require flexible storage options. The JONSBO TR03-G ATX Gaming Case provides multiple configurations. Users choose between capacity-focused or speed-optimized layouts.

Configuration One:

• 3x 2.5" SSD mounts
• 3x 3.5" HDD bays

Configuration Two:

• 5x 2.5" SSD positions
• 1x 3.5" HDD slot

This versatility accommodates different user needs. Content creators benefit from high-capacity HDD storage. Competitive gamers maximize SSD speed with multiple drive installation.

Premium Materials and Glass Panel Design Philosophy

Tempered glass dominates the TR03-G visual identity. Dual side panels showcase internal components. The front 4MM glass panel maintains structural integrity while displaying RGB lighting.

Magnesium-aluminum alloy triangular elements add distinctive character. Silver finish complements modern hardware aesthetics. The material combination ensures durability without excessive weight.

Steel chassis framework provides mounting stability. Motherboard and drive installations remain secure during transportation. Component flex and vibration concerns become minimal.

Power Supply and Cable Management Features

Standard ATX power supplies fit perfectly. Maximum PSU length reaches 180mm. Most modern units fall within this specification.

Front panel connectivity includes practical options:

• USB ports (2x)
• Audio jack (1x)
• Microphone input (1x)

Cable routing benefits from the spacious interior. The case depth of 595mm allows clean wire management. Behind-motherboard routing keeps visible areas tidy.

JONSBO TR03-G Compatibility with High-End Components

The TR03-G supports enthusiast-grade hardware combinations. ATX motherboards pair with full-sized graphics cards. Custom water cooling loops fit front and bottom radiator mounts.

Processor compatibility extends to high TDP chips. The 175mm CPU cooler clearance handles flagship air coolers. Tower designs from Noctua, be quiet!, and Deepcool install without modification.

Graphics card clearance accommodates current generation models. RTX 4090 and RX 7900 XTX cards require airflow shield removal. Mid-range options fit standard configuration perfectly.

Build Experience and Installation Process

Component installation follows logical sequences. Motherboard standoffs align precisely with mounting holes. Drive cages remove for cleaning or configuration changes.

Tempered glass panels attach securely without tools. Magnetic or clip-based systems prevent accidental detachment. Access to internal components remains straightforward during upgrades.

The case interior layout considers builder ergonomics. Spacious design reduces frustration during assembly. First-time builders and experienced modders both appreciate thoughtful spacing.

Where to Buy JONSBO TR03-G Glass Panel ATX Gaming Case in Bangladesh

PCB Store offers the JONSBO TR03-G in Bangladesh with competitive pricing. Authorized distribution ensures genuine products. Local availability eliminates international shipping delays.

The Silver variant provides sophisticated aesthetics. This finish complements both RGB-heavy and minimalist builds. Professional workstations benefit from understated elegance.

Warranty coverage protects your investment. PCB Store handles after-sales support locally. Technical assistance remains accessible throughout ownership.

Stock availability fluctuates based on demand. Contact PCB Store directly for current pricing. Early orders secure units during high-demand periods.
