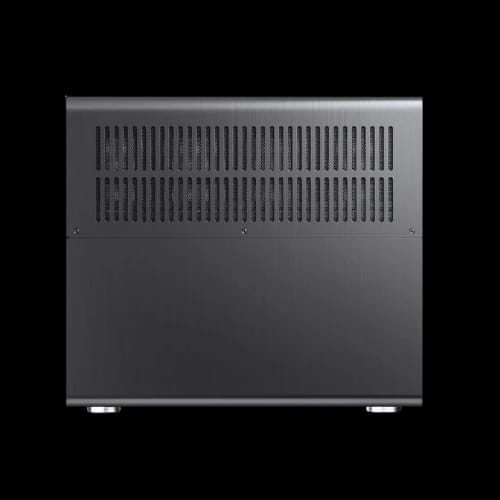

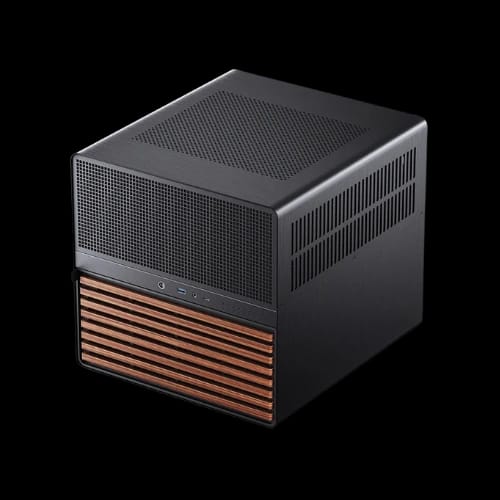

Jonsbo N5 E-ATX NAS Case (Black)
Jonsbo N5 E-ATX NAS Case (Black)
Jonsbo
Key Features
Jonsbo N5 NAS Case
12 Hot-Swap Drive Bays
E-ATX Motherboard Compatibility
8 PCI Expansion Slots
Walnut Wood Premium Finish
280mm AIO Liquid Support
Call For Price
Add to compare
Add To Wishlist
Share:
Specification
Description
Reviews
Delivery Charge
Technical Specifications
Model & Materials
Product Model
Jonsbo N5 (Black)
Materials
Steel, Aluminum, Walnut
Dimensions
380 x 430 x 280 mm
Hardware Compatibility
Motherboard Support
ITX / M-ATX / ATX / E-ATX
Max CPU Cooler Height
≤ 160 mm
Max GPU Length
325 mm - 350 mm
PSU Type
ATX (170 mm - 240 mm)
Storage & Expansion
3.5" Drive Bays
12 (Hot-swappable)
2.5" Drive Bays
4
PCI Expansion Slots
8
Cooling & I/O
Front Fan Support
2 x 120 mm / 2 x 140 mm
Side Fan Support
3 x 120 mm (Left / Right)
Rear Fan Support
3 x 120 mm
AIO Support
240 mm / 280 mm (Front)
Front I/O Ports
USB 3.2 Gen2 Type-C, USB 3.0, Audio
Warranty Information
Warranty
Per local retailer
FAQs
What motherboard sizes are compatible with the Jonsbo N5 E-ATX NAS Case?
How many drives can the Jonsbo N5 support?
What cooling options are available for the Jonsbo N5?
Can I install a large GPU in the Jonsbo N5?
What is the maximum height for a CPU cooler in the Jonsbo N5?
Does the Jonsbo N5 support ATX power supplies?
How much does the Jonsbo N5 E-ATX NAS Case cost at PCB Store?
How does the Jonsbo N5 compare to other NAS cases?
Is the Jonsbo N5 E-ATX NAS Case suitable for gaming builds?
