Product Description

JONSBO BO400 ATX Case – Struggling with airflow limits and oversized GPUs in modern builds?

A PC build fails fast when the chassis restricts cooling, space, or cable logic.

The JONSBO BO400 ATX Case targets builders facing GPU clearance limits, radiator congestion, and poor airflow geometry.

This enclosure focuses on structural control, cooling headroom, and hardware longevity inside serious PC Components builds.

Designed for performance-focused users, the BO400 aligns with demanding systems built around modern Motherboard, Processor, and CPU Cooler choices available through trusted retailers like PCB Store in Bangladesh.

JONSBO BO400 ATX Case Specifications and Performance Overview

The BO400 uses a mixed-material chassis built from SPCC steel plate, SGCC steel plate, and aluminum alloy.

This structure adds rigidity without visual bulk or thermal trapping.

Its external dimensions, including feet, measure 474mm × 311mm × 489mm (D/W/H).

That footprint supports large-scale airflow layouts and extended component clearance.

Key hardware compatibility highlights include:

• Motherboard support: MINI-ITX, MICRO-ATX, ATX
• Rear-mounted motherboard compatibility: supported
• GPU clearance: up to 435mm length
• CPU cooler height limit: up to 173mm
• ATX PS2 PSU length: up to 200mm

Net chassis weight reaches 12.9kg, signaling dense steel use and vibration control.

Gross shipping weight stands at 18.3kg, reflecting reinforced packaging.

This structure suits builders planning multi-upgrade lifecycles rather than short-term configurations.

JONSBO BO400 ATX Case Design Built for Thermal Density

Thermal density defines modern systems.

High-core processors and extended GPUs demand uninterrupted airflow paths.

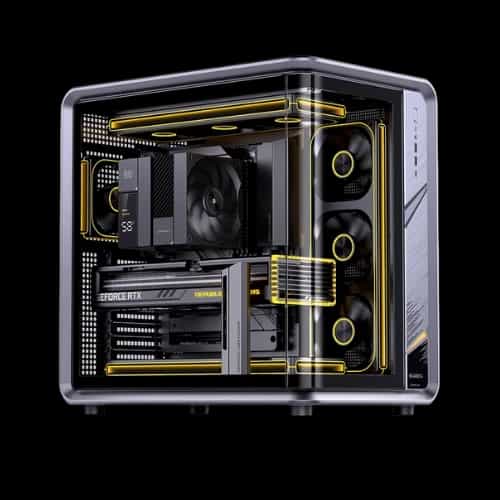

The BO400 addresses this with multi-zone fan and radiator placement across five surfaces.

Supported fan layouts include:

• Top: 3 × 120mm or 2 × 140mm
• Rear: 1 × 120mm
• Bottom: 3 × 120mm or 2 × 140mm
• Side: 3 × 120mm

This spread allows positive or negative pressure tuning depending on cooling strategy.

Builders running air coolers benefit from vertical airflow stacking.

Liquid cooling users gain flexibility across three radiator zones.

Liquid Cooling Support Inside the JONSBO BO400 ATX Case

Water cooling planning often fails due to radiator conflict.

The BO400 reduces those conflicts through layered radiator support.

Supported radiator sizes include:

• Top section: 240mm, 280mm, or 360mm
• Side section: 360mm
• Bottom section: 240mm, 280mm, or 360mm

This layout supports complex loops or large AIO units without blocking GPU length or PSU airflow.

Builders using high-TDP Processor models gain thermal margin.

Long rendering or gaming sessions remain stable under sustained loads.

Storage Configuration and Drive Bay Flexibility

Storage planning affects cable routing and airflow.

The BO400 balances both through shared mounting zones.

Drive bay support includes:

• 3.5-inch HDD: up to 4
• 2.5-inch SSD: up to 2, shared with two 3.5-inch bays

This layout suits hybrid builds combining bulk storage and fast boot drives.

Cable paths stay shorter.

Airflow remains unobstructed across bottom and side intake zones.

Front Panel I/O on the JONSBO BO400 ATX Case

Front I/O placement defines daily usability.

The BO400 focuses on modern connectivity without excess clutter.

Included front panel ports:

• USB 3.2 Gen1 Type-A ×2
• USB 3.2 Gen2 Type-C ×1
• Audio ×1
• Microphone ×1

High-speed Type-C access supports modern Motherboard headers.

This suits creators transferring large datasets or external SSD users.

GPU Clearance and Expansion Planning

GPU length remains a deal-breaker for many cases.

The BO400 supports graphics cards up to 435mm long.

This clearance supports:

• Triple-slot GPUs
• Extended heatsink designs
• Future-generation card lengths

Builders avoid forced compromises between cooling and GPU choice.

Side radiator placement stays clear of GPU airflow paths.

Bottom intake fans feed fresh air directly to the graphics card.

PSU and Power Layout Considerations

Power supply fit affects cable slack and airflow balance.

The BO400 supports ATX PS2 power supplies up to 200mm long.

This allowance supports:

• High-wattage units
• Fully modular cable sets
• Cleaner rear chamber routing

Power delivery remains stable under peak loads.

Cable congestion stays controlled across long-term use.

Use-Case Fit Within PC Components Builds

The BO400 aligns with users building performance-forward systems.

Gaming rigs, creator workstations, and hybrid productivity setups benefit equally.

Common build scenarios include:

• High-core Processor systems with liquid cooling
• Long GPU gaming builds
• Storage-heavy editing rigs

Inside PC Components selections, this casing fits users prioritizing airflow logic over visual gimmicks.

It pairs cleanly with modern Motherboard layouts and tall CPU Cooler designs.

Reliability and Long-Term Build Confidence

Material density affects vibration, noise, and alignment over time.

The BO400’s steel-heavy frame resists flex under full component load.

Aluminum alloy accents add structural stability without trapping heat.

This combination suits repeated upgrades and frequent hardware access.

Builders avoid panel warping and mounting fatigue.

System integrity remains intact across years of use.

Where the JONSBO BO400 ATX Case Fits Best Right Now

Availability through trusted retailers matters.

Local access simplifies warranty handling and component pairing.

At PCB Store in Bangladesh, the BO400 sits among curated PC Components listings.

Buyers match the case with compatible Motherboard, Processor, and CPU Cooler options without guesswork.

Limited regional availability increases demand.

Stock cycles move quickly during peak build seasons.

This chassis suits builders planning once, upgrading often, and avoiding thermal regret.
