Technical Specifications
General Information

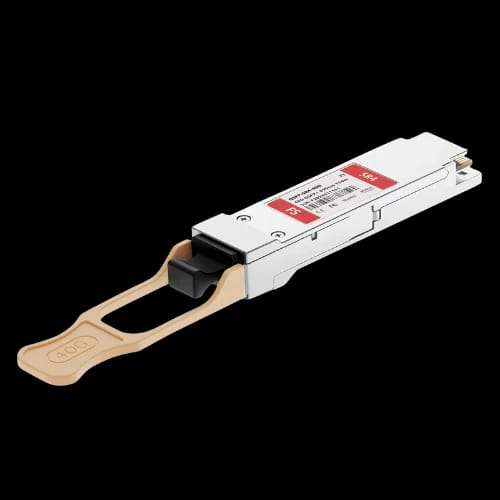

| Model | HPE H3C 40GBASE-SR4 QSFP+ 850nm 150m Module |
| Compatible Part Number | JG325A |
| Vendor | FS |
| Category | Network And Router |
| Sub-Category | SFP Module And Fiber |
Interface & Form Factor
| Form Factor | QSFP+ |
| Connector Type | MTP/MPO-12 Male |
| Cable Type | Multimode Fiber (MMF) |
| Core Size | 50µm |
Performance
| Max Data Rate | 41.25Gbps |
| Wavelength | 850nm |
| Max Transmission Distance | 150m (OM4), 100m (OM3) |
| Modulation | NRZ |
| Host FEC | Supported |
Optical Characteristics
| Transmitter Type | VCSEL |
| Receiver Type | PIN |
| TX Power | -7.6 ~ 2.4 dBm |
| Receiver Sensitivity | < -5.4 dBm |
| Receiver Overload | 2.4 dBm |
| Extinction Ratio | > 3 dB |
Monitoring & Protocols
| Digital Optical Monitoring | Yes |
| Supported Protocols | IEEE 802.3 40GBASE-SR4, SFF-8436 |
| Modal Bandwidth | 2000 MHz·km (OM3), 4700 MHz·km (OM4) |
Power & Environment
| Max Power Consumption | ≤1.5W |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Warranty | Available with PCB Store Bangladesh service support |
