Technical Specifications
General Information
| Specification | Details |

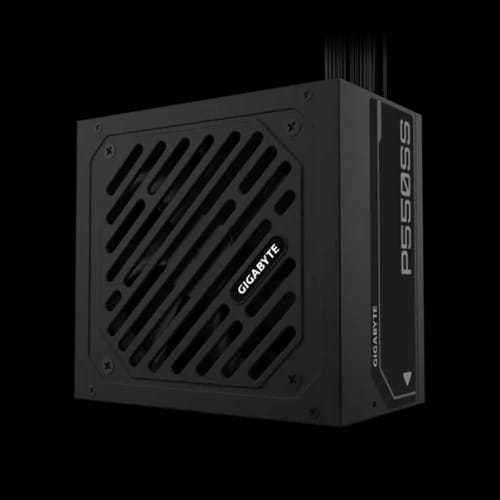

| Model | GP-P550SS |
| Type | Intel Form Factor ATX 12V v3.0 (Compatible with ATX 3.1) |
| Form Factor | ATX |
| Total Power Output | 550 Watts |
| Efficiency | 90% at Typical Load (230V EU) |
| Certification | 80 PLUS Silver |
| MTBF (Mean Time Between Failures) | >100,000 Hours |
| Fan Type | 120mm Fluid Dynamic Bearing (FDB) Fan |
| Cable Type | Flat, All Black |
| PFC Type | Active PFC (>0.9 Typical) |
Electrical & Technical Specifications
| Specification | Details |
| Input Voltage | 155 – 240 Vac |
| Input Current | 6.3A |
| Input Frequency | 50 – 60 Hz |
| Output Capacity | 550W |
| Efficiency Rating | 90% Typical Load |
| Power Good Signal | 100 – 150ms |
| Hold Up Time | >16ms |
| Protections | OVP (Over Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OTP (Over Temperature Protection) |
Cooling System
| Specification | Details |
| Cooling Type | Air |
| Fan Size | 120mm |
| Fan Bearing Type | Fluid Dynamic Bearing (FDB) |
| Performance | Quiet, Long Lifespan Cooling |
| Operating Noise Level | Low under typical load conditions |
Connectors
| Specification | Details |
| Connector Type | Quantity / Cable Length |
| Main Power (Motherboard) | 1 × 20+4 Pin ATX/MB – 600mm |
| CPU (EPS) | 1 × 4+4 Pin – 650mm |
| PCI-E (GPU) | 2 × 6+2 Pin – (600mm + 120mm) |
| SATA + Peripheral (Set 1) | SATA × 3 + 4-Pin Peripheral × 1 – (500mm + 120mm + 120mm + 120mm) |
| SATA + Peripheral (Set 2) | SATA × 2 + 4-Pin Peripheral × 2 – (500mm + 120mm + 120mm + 120mm) |
Physical Specifications
| Specification | Details |
| Dimensions (L × W × H) | 150 × 140 × 86 mm |
| Build Material | Durable Steel Housing |
| Color | Matte Black |
| Cable Design | Flat, Flexible, Black Cables for Easy Management |
Warranty Information
| Specification | Details |
| Warranty | 03 Years |
