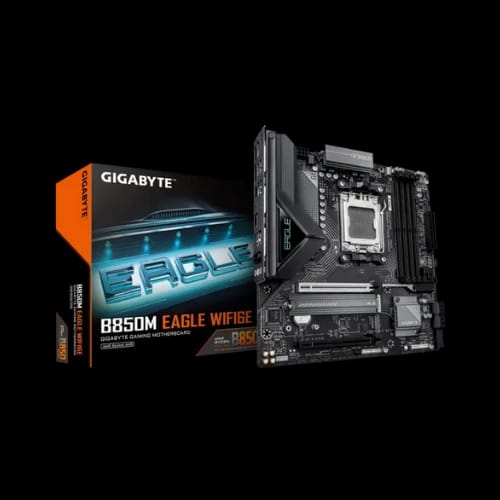

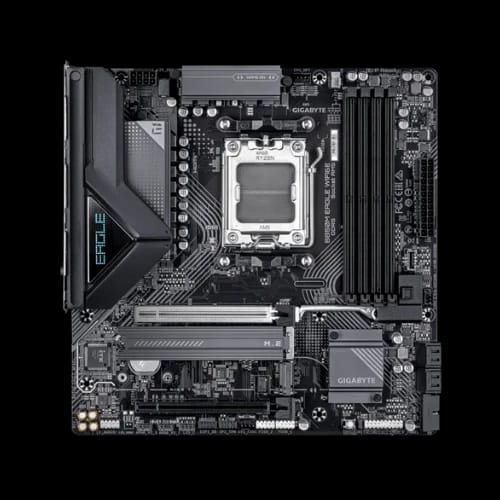

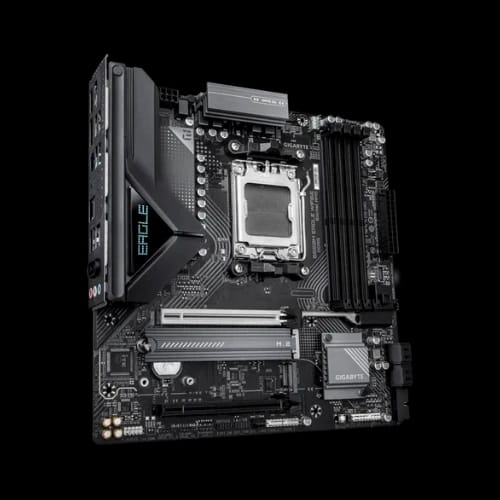

GIGABYTE B850M EAGLE WIFI6E AM5 DDR5 Micro ATX Motherboard

26000.00

Key Features

  • Model: B850M EAGLE WIFI6E
  • Supported CPU: AMD Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
  • Supported RAM: 4x DDR5, up to 256GB, 8200(OC)
  • Graphics Output: 2x Display Port, 1 x HDMI
  • Features: 2x M.2 Slot, Realtek 2.5GbE LAN, Intel Wi-Fi 6E RTL8852CE

Out Of Stock

Share:

Technical Specifications

Cpu & Chipset

CPU SupportAMD Socket AM5; Ryzen 9000/8000/7000 SeriesChipsetAMD B850Memory4 × DDR5 DIMM; Up to 256GB; Dual Channel; 4400–8200+ MT/s (OC) Supports AMD EXPO™ & XMPIntegrated Graphics1 × HDMI 2.1 (4096×2160@60Hz) 2 × DisplayPort 1.4 (3840×2160@144Hz) Triple Display SupportMax Memory Support256GB

Audio & Network

AudioRealtek® HD Audio CODEC 2/4/5.1/7.1-channelLAN & WirelessRealtek® 2.5GbE LAN Realtek® Wi-Fi 6E RTL8852CE; Bluetooth 5.3Expansion Slots1 × PCIe 5.0 x16 (CPU) 1 × PCIe 3.0 x16 (Chipset, x4)

Storage

Storage Interfaces2 × M.2 (PCIe 5.0/4.0) 4 × SATA 6Gb/s RAID 0/1/5/10 SupportUSB PortsRear: 1 × USB-C 3.2 Gen2; 1 × USB-A 3.2 Gen2; 2 × USB 3.2 Gen1; 4 × USB 2.0 Internal: 1 × USB-C 3.2 Gen2; 2 × USB 3.2 Gen1; 4 × USB 2.0Internal HeadersCPU/Chassis Fan; Water Pump; RGB/ARGB Headers; Front Panel Audio; USB 3.2/2.0; TPM Header; Clear CMOS; Reset Button

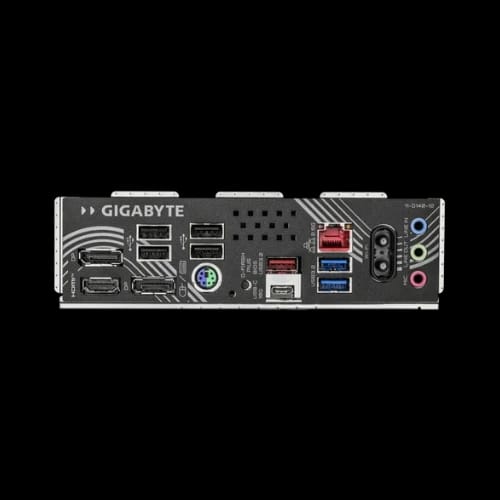

Back Panel Connectors

Connector1 × HDMI 2.1 2 × DisplayPort 1.4 1 × USB-C 3.2 Gen2 1 × USB-A 3.2 Gen2 2 × USB 3.2 Gen1 4 × USB 2.0 1 × PS/2 1 × RJ-45 LAN 2 × Wi-Fi Antenna 3 × Audio Jacks 1 × Q-Flash Plus Button

Warranty

Duration3 Years
