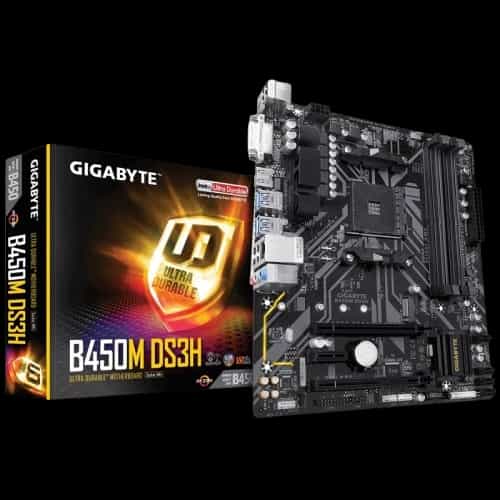

GIGABYTE B450M DS3H AM4 Micro ATX Motherboard

Product Description

GIGABYTE B450M DS3H AM4 Micro ATX Motherboard is designed to serve as a dependable foundation for AMD-based desktop systems that need flexibility, balanced performance, and long-term usability, making it a practical choice within the GIGABYTE AMD Motherboard lineup. Built around the widely adopted AM4 platform, it targets users who want stable Ryzen compatibility, practical expansion, and a compact Micro ATX footprint without unnecessary complexity. From everyday productivity systems to cost-conscious gaming builds, this Motherboard stands out with broad support for AMD processors and flexible DDR4 memory configurations, balancing legacy upgrade paths with modern connectivity for buyers who want proven value.`

GIGABYTE B450M DS3H AM4 Micro ATX Motherboard Overview

At the core of the GIGABYTE B450M DS3H AM4 Micro ATX Motherboard is the AM4 CPU socket, offering compatibility with Ryzen 5000, 5000G, 3rd, 2nd, and 1st Gen Ryzen processors. It also supports Ryzen Vega APUs and Athlon Vega processors, giving users flexibility when choosing CPUs with or without integrated graphics. This broad CPU support makes the motherboard suitable for a wide range of performance targets, from entry-level systems to capable multi-core setups.

The motherboard is powered by the AMD B450 chipset, a platform known for its balance between functionality and stability. While remaining efficient, the chipset enables essential features such as PCIe 3.0 support for graphics cards and flexible storage configurations. This ensures consistent performance for everyday workloads, content consumption, and gaming scenarios that do not require the latest chipset generation.

Memory support is another key area where the GIGABYTE B450M DS3H AM4 Micro ATX Motherboard delivers versatility. It features four DDR4 DIMM slots with support for up to 128GB of memory. Supported memory speeds include 3600(O.C.), 3466(O.C.), 3200(O.C.), 2933, 2667, 2400, and 2133 MHz. Dual-channel architecture ensures balanced bandwidth, while compatibility with both ECC and non-ECC unbuffered memory provides additional flexibility depending on system requirements.

In terms of graphics output, the motherboard supports HDMI with resolutions up to 4096×2160 at 60Hz through HDMI 2.0 with HDCP 2.2 support, alongside DVI-D output up to 1920×1200 at 60Hz. This allows the use of integrated graphics from supported APUs for high-resolution displays, office setups, or compact systems where a discrete GPU may not be required.

Key Features and Benefits

One of the primary benefits of the GIGABYTE B450M DS3H AM4 Micro ATX Motherboard is its balanced feature set tailored for real-world use. It avoids unnecessary additions while focusing on connectivity, expandability, and system stability.

Audio performance is handled by Realtek HD Audio, supporting 2, 4, 5.1, and 7.1-channel output. The inclusion of S/PDIF output support ensures compatibility with external audio systems, making it suitable for both entertainment and productivity-focused environments. This audio configuration meets the needs of most users without requiring a dedicated sound card.

Networking is powered by a Realtek GbE LAN controller with support for 10/100/1000 Mbit speeds. This ensures stable wired connectivity for online gaming, streaming, and file transfers. For users prioritizing consistent network performance, this LAN solution provides dependable throughput across a wide range of use cases.

Expansion capabilities are practical and efficient. The motherboard includes one PCIe 3.0 x16 slot for graphics cards, one PCIe 2.0 x4 slot, and one PCIe 2.0 x1 slot. This configuration supports standard GPU installations while leaving room for additional expansion cards, such as capture cards or network adapters. AMD Quad-GPU and 2-Way CrossFire support further extends flexibility for multi-GPU configurations within platform limits.

Power Delivery, Efficiency, and Technical Highlights

The GIGABYTE B450M DS3H AM4 Micro ATX Motherboard uses a standard 24-pin ATX power connector paired with an 8-pin ATX 12V connector. This setup ensures stable power delivery to supported processors, including higher-core-count Ryzen CPUs operating under sustained loads.

Cooling support is straightforward and effective, with dedicated connectors for a CPU fan and a system fan. This allows users to configure airflow appropriately for compact Micro ATX cases, balancing thermal performance and noise levels. The motherboard layout supports efficient cable management and airflow planning, which is especially important in smaller enclosures.

The BIOS is based on a 128 Mbit AMI UEFI BIOS, providing a modern interface for system configuration and firmware management. UEFI support simplifies hardware detection, boot configuration, and system tuning, making the board accessible to both experienced builders and first-time users.

GIGABYTE B450M DS3H AM4 Micro ATX Motherboard Storage and Connectivity

Storage flexibility is a key strength of the GIGABYTE B450M DS3H AM4 Micro ATX Motherboard. It includes one M.2 slot supporting PCIe x4/x2 and SATA-based drives, alongside four SATA 6Gb/s ports. This configuration allows users to combine fast NVMe or SATA M.2 storage with traditional SATA drives for mass storage.

RAID support includes RAID 0, RAID 1, and RAID 10 configurations, enabling users to prioritize either performance or data redundancy depending on their storage needs. This makes the board suitable for systems that handle large files, backups, or mixed-use workloads.

USB connectivity is well balanced across rear and internal options. The rear panel provides four USB 3.1 Gen1 ports and four USB 2.0 ports, ensuring compatibility with modern peripherals as well as legacy devices. Internally, the motherboard supports two USB 3.1 Gen1 ports and four USB 2.0 ports via headers, making it easy to connect front-panel USB ports in most cases.

Additional internal connectors include an RGB header, TPM header, S/PDIF out header, serial header, and Clear CMOS support. These features enhance customization, security, and system maintenance without adding unnecessary complexity.

Compatibility and Ideal Use Cases

The GIGABYTE B450M DS3H AM4 Micro ATX Motherboard is well-suited for a wide range of system builds. Its compatibility with multiple generations of Ryzen processors makes it ideal for users upgrading existing AM4 systems or building cost-effective PCs using proven components from AMD.

For users assembling a compact desktop, the Micro ATX form factor with dimensions of 24.4cm × 21.5cm fits comfortably into most mid-tower and smaller cases. This makes it appropriate for home offices, study setups, and mainstream gaming systems where space efficiency matters.

Systems that rely on integrated graphics can benefit from the HDMI and DVI-D outputs, while users planning to install a discrete GPU can take advantage of the PCIe 3.0 x16 slot. The motherboard’s balanced expansion options make it adaptable to both minimal and moderately expanded configurations.

Reliability, BIOS, and Warranty Coverage

Reliability is a key consideration for long-term system stability, and the GIGABYTE B450M DS3H AM4 Micro ATX Motherboard is built with this in mind. The AMI UEFI BIOS provides a stable firmware environment, supporting consistent hardware compatibility and simplified updates.

The motherboard is backed by a 03-year warranty, offering peace of mind for users investing in a dependable AM4 platform. This warranty coverage reflects confidence in build quality and long-term usability, particularly important for systems expected to remain in service for several years.

As part of the broader product ecosystem from GIGABYTE, the board aligns with established manufacturing standards and platform support practices.

Why Choose GIGABYTE B450M DS3H AM4 Micro ATX Motherboard Now

For users seeking a stable, flexible, and space-efficient motherboard, the GIGABYTE B450M DS3H AM4 Micro ATX Motherboard offers a practical balance of features and compatibility. Its support for a wide range of Ryzen processors, generous memory capacity, and versatile storage options make it a strong choice for mainstream builds.

The Micro ATX form factor ensures compatibility with a broad selection of cases, while the inclusion of essential modern connectivity keeps the platform relevant for everyday computing needs. Whether upgrading an existing AM4 system or building a new one around proven components, this motherboard delivers dependable functionality without unnecessary cost.

Ready to Buy the GIGABYTE B450M DS3H AM4 Micro ATX Motherboard

If you are planning a reliable AM4-based system with broad Ryzen compatibility, flexible memory support, and practical connectivity, explore compatible PC Components that pair well with the GIGABYTE B450M DS3H AM4 Micro ATX Motherboard. Its balanced Micro ATX design suits productivity and everyday gaming builds, delivering dependable performance and long-term value across a wide range of setups from GIGABYTE. Secure yours today from PCB Store to complete your build with confidence.
