Technical Specifications
Model Information
| Specification | Details |
| Model | TALOS M3 MESH |
| Case Type | Mid Tower |
| Case Color | Black |
| Synchronization | 5V 3-Pin Addressable Header |
Motherboard & Compatibility
| Specification | Details |
| Motherboard Support | E-ATX, ATX, Micro-ATX, Mini-ITX |
Build & Design
| Specification | Details |
| Material | SPCC + ABS + Tempered Glass |
| Window Panel | Left Side |
| Expansion Slots | 7 + 3 |
Cooling & Radiator Support
| Type | Quantity |
| Radiator Support | Top: 360mm, 280mm / Front: 360mm, 280mm / Rear: 120mm, 140mm |
| Fan Support | Top: 3 x 120mm, 2 x 140mm / Front: 3 x 120mm, 2 x 140mm / Rear: 1 x 120mm, 1 x140mm |
| Pre- Installed Fans | Front: 2 x 140mm ARGB PWM Fans / Rear: 1 x 120mm ARGB PWM Fan |
Drive Bays
| Type | Quantity |
| 3.5" Drive Bays | 2 or (1 × 2.5" + 1 × 3.5" in HDD Cage) |
| 2.5" Drive Bays | 3 (SSD Bracket) |
I/O Ports
| Specification | Details |

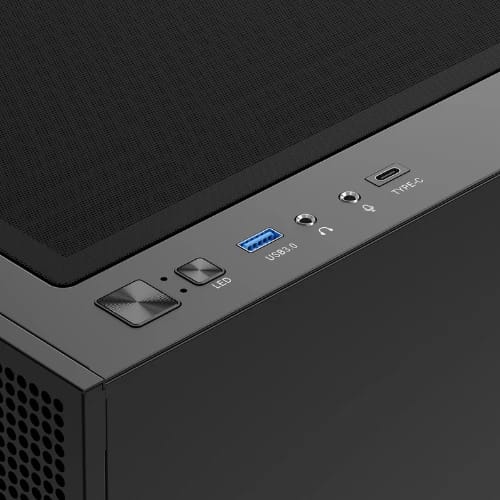

| Ports | USB 3.0 × 1, Type-C × 1, HD Audio × 1, LED Control × 1 |
Clearance
| Specification | Details |
| Max CPU Cooler Height | 180 mm |
| Max GPU Length | 390 mm |
| Max PSU Length | 200 mm |
Physical Specification
| Specification | Details |
| Dimensions (L×W×H) | 440 × 230 × 480 mm |
| Net Weight | 7.6 kg / 16 lb |
Additional Features
| Specification | Details |
| Pre-Installed Control Box | 6-Port Hub (3 Ports Used) |
| Included Items | User Manual |
Warranty Information
| Specification | Details |
| Warranty | No Warranty |
