Technical Specifications
General
| Product Type | SIP Speaker |

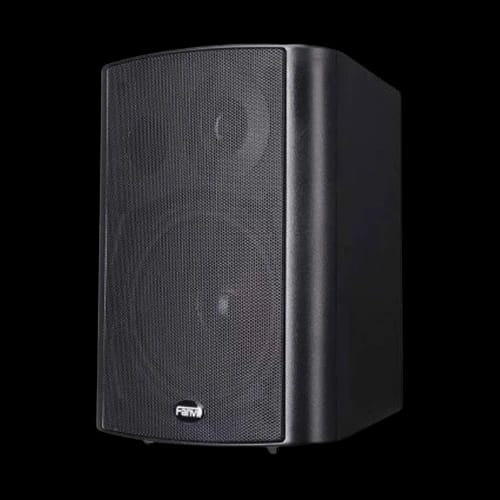

| Model | FANVIL IW30 SIP SPEAKER |
| Installation | Wall-mounted |
| SIP Lines | 2 SIP lines |
Power
| Output Power | PoE: 10W |
| DC Power Output | 12V DC 2A: 10W |
| DC Power Output | 18V DC 2A: 20W |
| DC Power Output | 24V DC 2A: 30W |
| Power Supply | PoE (48V) / 12V 2A / 18V 2A / 24V 2A DC |
| External Power | Supported |
Audio
| Frequency Range | 75 Hz – 20 kHz |
| Narrowband Codecs | G.711a/u, G.723.1, G.726-32K, G.729AB |
| Wideband Codec | G.722 |
| Audio Features | Voice activation detection, mute |
| DTMF | In-band, RFC2833, SIP INFO |
| External Audio Output | Supported |
Network & Security
| WAN Port | 10/100BASE-Tx, Auto-MDIX, RJ-45 |
| LAN Port | 10/100BASE-Tx, Auto-MDIX, RJ-45 |
| Network Modes | DHCP / Static / PPPoE |
| VLAN | Supported |
| VPN | L2TP / PPTP / IPSec |
| Security | SRTP, MD5 authentication |
| Web Access | HTTP / HTTPS |
| QoS | 802.1p/q, DSCP |
| Other Network Features | DNS, secondary DNS, STUN, SNIP client, Web Filter |
Management
| Auto Provisioning | FTP / TFTP / DHCP OPT66 / SIP / HTTP / HTTPS / PNP / TR069 |
| Management Interface | Web management |
| Packet Capture | Web-based packet dump |
| Configuration | Export / Import |
| Software Upgrade | Supported |
| Logs | Syslog |
Physical
| Main Chip | Broadcom |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -10°C to 50°C |
| Relative Humidity | 20% – 80% |
| Device Size | 165 × 240 × 185 mm |
| Package Weight | 1 kg |
| Gift Box Dimensions | 260 × 315 × 305 mm |
| Outer CTN Dimensions | 530 × 340 × 630 mm (4 PCS) |
Warranty information
| Warranty | 1 Year |
