/ PC Components / Casing / Deepcool / DeepCool CH160 WH ultra-portable mini-ITX Casing

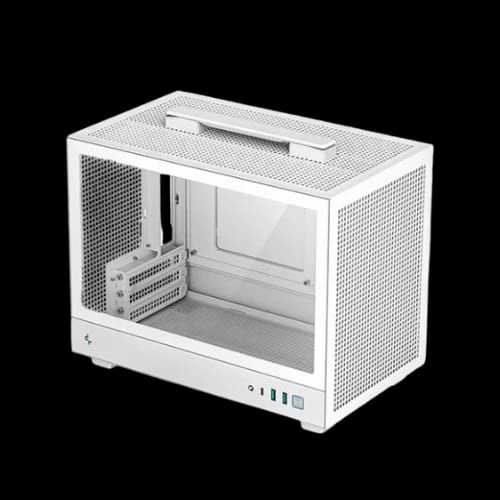

DeepCool CH160 WH ultra-portable mini-ITX Casing

৳6,000

Key Features

DEEPCOOL CH160 White
Mini-ITX Support
Tempered Glass Panel
Compact & Portable
Multiple Fan Options
Front USB-C Port

Out Of Stock

Case Overview

Case TypeMini-ITXMaterialABS + SPCC + Tempered GlassColorWhiteWeight3.3 KgDimensions (L×W×H)336 × 200 × 283.5 mm

Cooling & Fans

Front Fan Support1 × 120 mm (or 2.5" SSD / 3.5" HDD)Top Fan Support2 × 120 mmRear Fan Support1 × 120 mmMaximum CPU Cooler Height172 mmMaximum GPU LengthSFX/SFX-L: 305 mm / ATX: 230 mmMaximum PSU Length140 mm (SFX / SFX-L)

Drive Bays & Expansion

Expansion Slots33.5" Drive Bays1 (Front: choose 120mm fan / 2.5" SSD / 3.5" HDD)2.5" Drive Bays1 (Front: choose 120mm fan / 2.5" SSD / 3.5" HDD)

Front I/O & Connectivity

USB 3.02 PortsAudio1 PortGen2 Type-C1 Port

Compatibility

PSU TypeATX PS2 / SFX / SFX-L

Warranty Information

WarrantyNo Warranty

Product Description

The DeepCool CH160 WH ultra-portable mini-ITX Casing represents a paradigm shift for PC enthusiasts, establishing itself as a premier Deepcool Casing for those who refuse to compromise on cooling performance while seeking a compact, mobile footprint. Finding a chassis that balances the thermal requirements of high-end components with the space constraints of a Mini-ITX build is a notorious challenge. However, the DeepCool CH160 WH addresses this gap by offering an innovative Casing design that prioritizes high-airflow mesh panels and a staggering CPU cooler clearance rarely seen in the ultra-portable category. Whether you are building a high-performance workstation or a portable gaming rig, this chassis provides the structural integrity and thermal headroom necessary to house modern hardware effectively.

DeepCool CH160 WH Ultra-Portable Mini-ITX Casing Overview

When selecting a small form factor (SFF) case, technical precision is paramount. The DeepCool CH160 WH ultra-portable mini-ITX Casing is engineered from a robust combination of ABS, SPCC (cold-rolled steel), and a premium tempered glass side panel. Despite its compact dimensions of 336 × 200 × 283.5 mm, the case maintains a lightweight profile at just 3.3 Kg, making it an ideal candidate for users who require a portable yet durable machine.

The performance of an SFF case is often dictated by its internal layout. DeepCool has optimized the CH160 WH to ensure that every millimeter of space is utilized. The inclusion of a tempered glass window allows for a clear view of your internal components, while the white finish (WH) provides a clean, professional aesthetic that fits seamlessly into any modern workspace or gaming setup.

High-Airflow Design and Cooling Potential of the DeepCool CH160 WH

One of the standout features of the DeepCool CH160 WH ultra-portable mini-ITX Casing is its exceptional cooling compatibility. While most Mini-ITX cases limit users to low-profile air coolers or specific AIO liquid coolers, the CH160 WH supports a maximum CPU cooler height of 172 mm. This allows for the installation of massive tower coolers, ensuring that even high-TDP processors remain cool under heavy workloads.

The ventilation system is designed for maximum throughput. The case features mesh panels on three sides—front, top, and bottom—to facilitate unrestricted airflow. Users can customize their cooling configuration based on their specific hardware needs:

Front Support: 1 × 120 mm fan (optional, shares space with storage drives).
Top Support: 2 × 120 mm fans.
Rear Support: 1 × 120 mm fan.

By utilizing these fan mounts, the CH160 WH creates a direct path for cool air to reach the GPU and CPU, mitigating the heat soak issues commonly found in ultra-portable builds.

Advanced Hardware Compatibility and GPU Support

The DeepCool CH160 WH ultra-portable mini-ITX Casing offers flexible internal configurations to accommodate various hardware standards. One of the most critical aspects of this case is its dual-PSU support. Users can choose between standard ATX PS2 power supplies or more compact SFX and SFX-L units.

This choice of power supply directly impacts the available space for your graphics card:

With SFX/SFX-L PSU: The case supports high-end GPUs up to 305 mm in length.
With ATX PSU: The GPU clearance is reduced to 230 mm.

The three-slot expansion design ensures that thicker, modern graphics cards can be installed without interference. This versatility makes the CH160 WH a top-tier choice for gamers who want to pack the power of a full-sized desktop into a portable frame.

Versatile Storage and Drive Bay Configurations

Storage management in the DeepCool CH160 WH ultra-portable mini-ITX Casing is designed with modularity in mind. The front bracket of the chassis is a multi-purpose mounting point. Depending on your system requirements, you can choose to install:

A 120 mm intake fan for maximum thermal performance.
A 3.5" HDD for high-capacity bulk storage.
A 2.5" SSD for fast secondary storage.

This "choose-your-own" approach allows the user to prioritize either cooling or storage density without needing additional brackets or specialized modifications.

Front I/O Connectivity and Modern Interface Standards

In today’s fast-paced digital environment, high-speed connectivity is a necessity. The DeepCool CH160 WH ultra-portable mini-ITX Casing features a streamlined front I/O panel that includes:

2 x USB 3.0 Ports: For high-speed data transfer with peripheral devices.
1 x Gen2 Type-C Port: Ensuring compatibility with modern high-speed external drives and mobile devices.
1 x Audio Port: A combo jack for seamless headset connectivity.

The inclusion of a Type-C port at this price point highlights DeepCool's commitment to modern standards, making the CH160 WH future-proof for years to come.

Use-Case Scenarios: Who is the DeepCool CH160 WH For?

The DeepCool CH160 WH ultra-portable mini-ITX Casing is specifically designed for three primary user groups:
The Mobile Professional: If you frequently move between home and office or travel for work, the 3.3 Kg weight and integrated carrying handle potential (via its compact frame) make it a superior alternative to bulky towers.
The Minimalist Gamer: For those who want a powerful gaming desk setup without a giant footprint, the CH160 WH occupies minimal desk real estate while still showcasing high-end components through the tempered glass.
The Thermal Enthusiast: Unlike many SFF cases that "choke" components, this casing is built for those who want to use full-sized air coolers for silent and efficient thermal management.

Reliability and Build Quality of the DeepCool CH160 WH

Constructed with SPCC steel, the DeepCool CH160 WH ultra-portable mini-ITX Casing feels solid and premium. The white powder-coated finish is resistant to fingerprints and scratches, maintaining its pristine look over time. The tempered glass panel is securely mounted, providing both safety and aesthetic appeal. DeepCool has a long-standing reputation for manufacturing reliable PC hardware, and the CH160 WH carries that legacy forward with precise machining and thoughtful cable management options within its compact interior.

Why Choose the DeepCool CH160 WH for Your Next Build?

Choosing the right Mini-ITX case often involves making sacrifices. Usually, you must choose between a small size and good cooling, or between portability and component compatibility. The DeepCool CH160 WH ultra-portable mini-ITX Casing eliminates these trade-offs. By allowing for a 172 mm CPU cooler and a 305 mm GPU, it bridges the gap between ultra-compact SFF cases and larger Micro-ATX towers.

Its ability to house both SFX and ATX power supplies provides builders with the flexibility to use existing hardware or opt for specialized SFF components. Combined with its modern Gen2 Type-C connectivity and striking white design, it is one of the most competitive Mini-ITX cases on the market today.

Buy the DeepCool CH160 WH Ultra-Portable Mini-ITX Casing at the Best Price

If you are looking for high-performance PC Components that combine portability, elite cooling, and a stunning aesthetic, the DeepCool CH160 WH is the definitive choice for your next build. Its unique ability to house full-sized air coolers in a Mini-ITX form factor makes it a standout option for any serious builder. By choosing Deepcool, you are investing in a brand trusted globally for everything from premium thermal solutions to advanced chassis design. Upgrade your desk setup with a chassis that offers maximum power in a minimum footprint, and secure your unit today from PCB Store.
