Does the Biostar A520MT support Ryzen 5000 series CPUs?

Yes. It supports Ryzen 5000 (Vermeer) and 5000 G (Cezanne). BIOS update may be needed.

What’s the maximum RAM for this motherboard?

Up to 64GB DDR4. Two slots. Supports speeds up to 4933+ MT/s (OC).

Does it have Wi-Fi or Bluetooth?

No built-in Wi-Fi or Bluetooth. Add a PCIe Wi-Fi card for wireless.

How many M.2 slots are available?

One M.2 slot. Supports PCIe 3.0 x4 SSDs (2242/2260/2280). Plus four SATA ports.

What’s the warranty for this motherboard in Bangladesh?

Three years manufacturing warranty. Buy from PCB Store for full support.

Is it good for gaming?

Yes. Supports Ryzen APUs with Radeon Graphics. PCIe 3.0 x16 for GPUs. Great for budget gaming.

Newsletter Contact Us Forum

HOME

SOLD OUT

biostar a520mt ddr4 amd am4 micro atx motherboard

biostar a520mt ddr4 amd am4 micro atx motherboard 2

biostar a520mt ddr4 amd am4 micro atx motherboard 3

biostar a520mt ddr4 amd am4 micro atx motherboard 4

/ PC Components / Motherboard / Biostar (AMD) / BIOSTAR A520MT DDR4 AM4 Micro ATX Motherboard

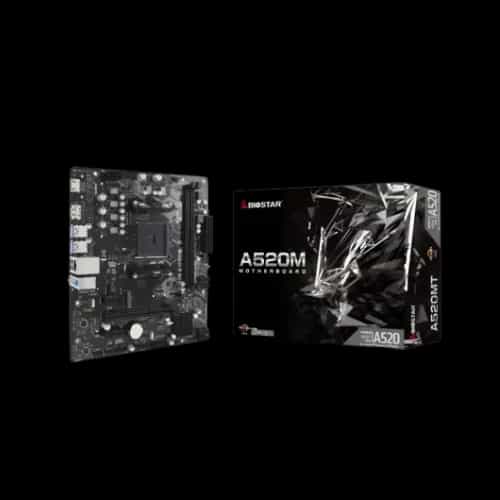

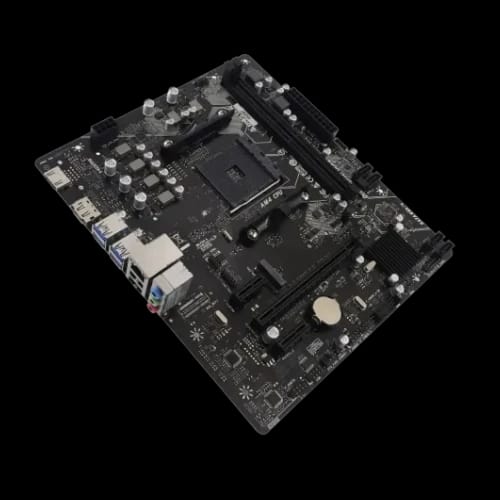

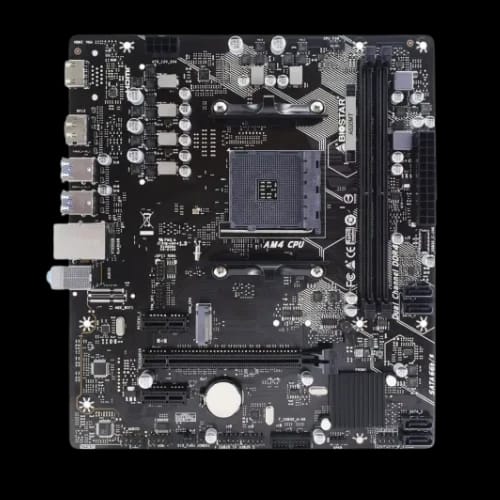

BIOSTAR A520MT DDR4 AM4 Micro ATX Motherboard

৳7500.00

Key Features

Model: A520MT
Supported CPU: Socket AM4 supports AMD Ryzen 3rd Gen (Matisse/ Renoir) & Ryzen 4th Gen (Vermeer/ Cezanne)
Supported RAM: 2 x DIMM, DDR4
Graphics Output: 1 x HDMI, 1 x DP Port
Features: 1 x M.2 Slot, Realtek Gigabit LAN

Out Of Stock

Model Specification

ChipsetAMD A520Form FactorMicro ATX (23.5 cm × 20.8 cm)Audio CodecRealtek ALC897, 7.1-Channel HD Audio, Hi-Fi (Front)Bundled SoftwareBullGuard Internet Security

CPU Support

SocketAMD Socket AM4Supported ProcessorsAMD Ryzen™ 3rd Gen (Matisse / Renoir) and 4th Gen (Vermeer / Cezanne)Future SupportCompatible with future AMD Ryzen processors via BIOS update

Memory

Memory TypeDDR4Slots2 × DIMMMax Capacity64 GBArchitectureDual ChannelSupported Speeds4th Gen Ryzen (Vermeer): 4400+(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200 / 2933 / 2667 / 2400 / 2133 4th Gen Ryzen APU (Cezanne): 4933+(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200 / 2933 / 2667 / 2400 / 2133 3rd Gen Ryzen (Matisse): 4400+(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200 / 2933 / 2667 / 2400 / 2133 3rd Gen Ryzen APU (Renoir): 4933+(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200 / 2933 / 2667 / 2400 / 2133

Graphics

Graphics SourceIntegrated GPU (depends on CPU model)API SupportDirectX 12, HDCPDisplay Output1 × HDMI Port

Expansion Slots

Ryzen 5000 / 3000 Series CPUsOperates in ×16 or ×4/×4/×4/×4 modeRyzen 5000G / 4000G Series APUsOperates in ×16 or ×8/×4/×4 modeA520 ChipsetStandard Expansion Slots

Storage

Total Storage Interface1 × M.2 Socket + 4 × SATA III (6 Gb/s) PortsM.2 Slot (M2M_CPU)Type 2242 / 2260 / 2280 SSDs Supports PCIe 3.0 ×4 (32 Gb/s) & SATA III (6 Gb/s)SATA Ports (Chipset)4 × SATA III (6 Gb/s), Supports AHCI & RAID 0 / 1 / 10

USB Connectivity

Internal HeadersSupports front panel expansion

Networking

LAN ControllerRealtek RTL8111HSpeed10 / 100 / 1000 Mbps (Auto-Negotiation)FeaturesHalf/Full Duplex Capability

Warranty

Duration3 Years

Audio

CodecRealtek ALC897Channels7.1-Channel HD AudioFront AudioHi-Fi Audio OutputAudio Jacks3 × Audio Jacks

Internal I/O Connectors

Power1 × 24-Pin ATX Power, 1 × 8-Pin CPU PowerCooling1 × CPU Fan, 1 × System FanStorage4 × SATA III (6 Gb/s)USB2 × USB 2.0 headers, 1 × USB 3.2 Gen1 header, 1 × USB 3.2 Gen2 Type-C headerFront Panel1 × Front Panel Header, 1 × Front Audio HeaderMiscellaneous1 × Internal Speaker Header, 1 × Clear CMOS, 1 × COM Port, 1 × TPM Header

Additional Features

AudioHi-Fi Audio Front OutputRAID SupportRAID 0 / 1 / 10Software BundleBullGuard Internet Security
