/ PC Components / Motherboard / Biostar (AMD) / BIOSTAR A520MS DDR4 AM4 Micro-ATX Motherboard

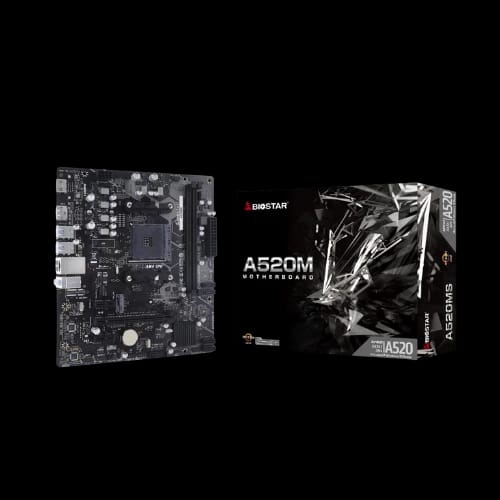

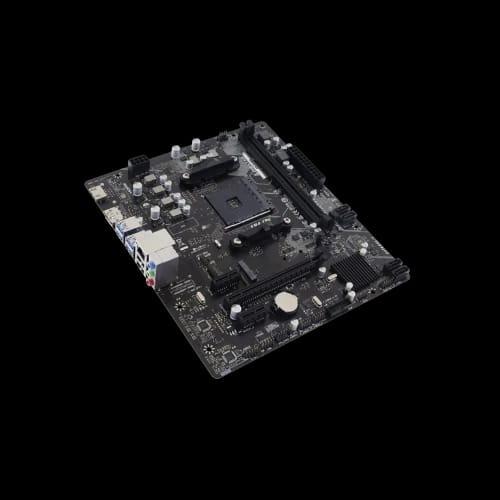

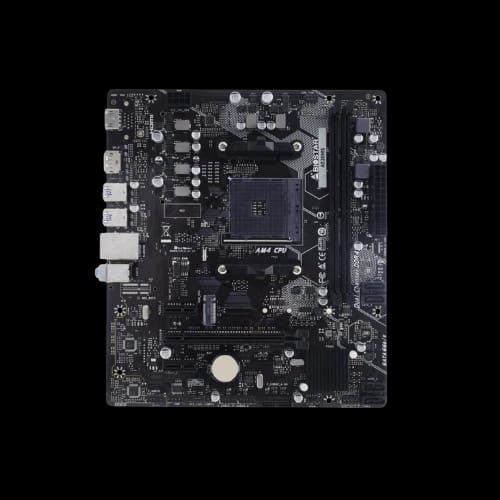

BIOSTAR A520MS DDR4 AM4 Micro-ATX Motherboard

৳7400.00

Key Features

  • Biostar A520MS Motherboard
  • AMD AM4 CPU Support
  • DDR4 Memory 64GB
  • PCIe 3.0 Expansion
  • M.2 & SATA Storage
  • 7.1 Audio Channels
  • Gigabit LAN

Out Of Stock

Share:

Technical Specifications

CPU & Chipset

Socket & SupportAM4; Supports AMD Ryzen 3rd Gen (Matisse/Renoir) & 4th Gen (Vermeer/Cezanne); Future CPUs via BIOS update

Memory Support

Slots & Speed2× DDR4 DIMM, Up to 64GB, Speeds from 2133 to 4933+ MHz (OC), Non-ECC

Expansion Slots

PCIe Slots1× PCIe 3.0 x16, 2× PCIe 3.0 x1

Storage & RAID

Ports4× SATA III (6Gb/s), RAID 0/1/10; 1× M.2 (PCIe 3.0 x4 / SATA III)

Audio & Networking

Codec & LANALC897 7.1 HD Audio, Hi-Fi Front; Realtek RTL8111H 1Gb LAN

Internal I/O

ConnectorsUSB 2.0 ×2, USB 3.2 Gen1 ×1, CPU & System Fan, 8-pin + 24-pin Power, Front Audio, TPM, COM, Clear CMOS

Rear I/O Ports

Ports1× HDMI, 1× DP, 4× USB 3.2 Gen1, 2× USB 2.0, 1× RJ-45, 3× Audio Jacks

Form Factor & OS

Size & OSMicro-ATX (20.8 × 23.5 cm); Windows 10/11 (64-bit) Supported

Accessories & Software

Included2× SATA Cables, I/O Shield, M.2 Anchor, Driver DVD, Quick Guide; BullGuard Software

Warranty

Duration3 Years
