Technical Specifications
Model Information
| Model | ASUS ProArt Projector A1 |
| Brand | ASUS |
Display Technology
| Display Type | DLP LED Projector |
| Native Resolution | 1920 × 1080 (Full HD) |
| Maximum Input Resolution | 3840 × 2160 |
| Brightness | 3000 Lumens |
| Contrast Ratio | 800:1 |
| Display Colors | 1.07 Billion |
| Color Saturation | 98% sRGB / 82% DCI-P3 |
| LED Lifespan | Up to 30,000 Hours |
Projection Lens
| Throw Ratio | 1.3:1 – 1.56:1 |
| Projection Distance | 1.15 – 5.7 m |
| Zoom Ratio | 1.2× |
| Projection Offset | 83% ±5% |
| Focus | Manual |
Video Features
| Keystone Adjustment | ±40° Vertical / ±40° Horizontal |
| Auto Keystone | Yes |
| Aspect Ratio | Auto / 16:10 / 16:9 / 4:3 |
| 4 Corner Adjustment | Yes |
| 3D Support | Yes |
| HDCP Support | Yes |
| Projector Placement | Front Table / Rear Table / Front Ceiling / Rear Ceiling |
Audio
| Built-in Speaker | 10W Speaker with Smart AMP |

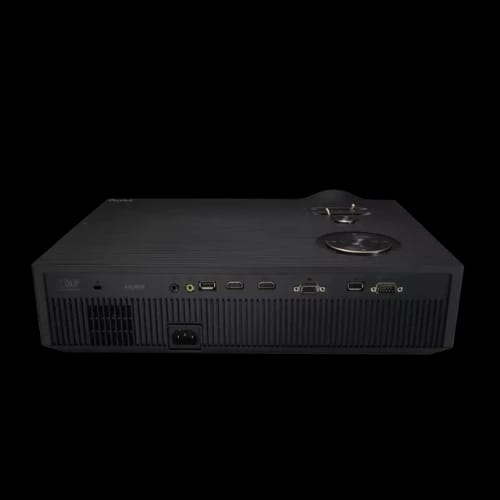

Connectivity Ports
| HDMI | 2 × HDMI |
| VGA | 1 × VGA |
| USB Ports | 2 × USB-A (5V / 1.5A Power Output) |
| RS232 | Yes |
| Audio Ports | Audio In / Audio Out |
| Wireless Projection | Yes |
| WiFi | Yes (WiFi Dongle / TV Box) |
Signal Frequency
| Digital Signal Frequency | 15–101 KHz (H) / 24–120 Hz (V) |
| Analog Signal Frequency | 15–101 KHz (H) / 50–120 Hz (V) |
Power & Noise
| Max Power Consumption | 370W |
| Standby Power | >0.5W |
| Acoustic Noise (Standard) | 32 dBA |
| Acoustic Noise (Eco) | 28 dBA |
Operating Conditions
| Operating Temperature | 0 – 40°C |
| Operating Humidity | 10 – 90% |
Physical Design
| Chassis Color | Black |
| Adjustable Stand | Yes |
| Ceiling Mount Hole | Yes |
Dimensions & Weight
| Dimensions (W×H×D) | 405 × 99 × 283 mm |
| Box Dimensions | 560 × 274 × 430 mm |
| Net Weight | 5.7 kg |
| Gross Weight | 8.1 kg |
Included Accessories
| Accessories | Remote Control, HDMI Cable, Carrying Bag, Power Cord, AAA Battery, QSG, Warranty Card, WiFi Dongle |
Warranty
| Warranty | Manufacturer Warranty Card Included |
