Technical Specifications
Model Information

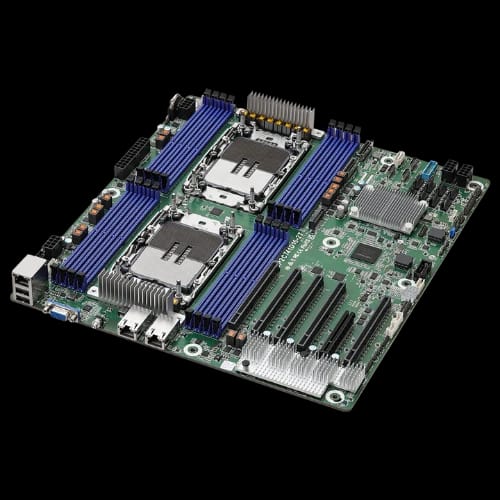

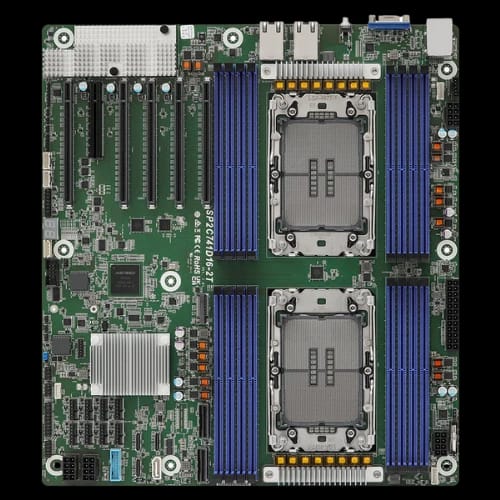

| Model | ASRock Rack P2C741D16-2T |
| Form Factor | EEB Server |
| Chipset | Chipset |
Processor (CPU)
| CPU Support | Dual 5th/4th Gen Intel Xeon Scalable |
| CPU Socket | 2 × LGA 4677 |
| Max CPU TDP | Up to 350W per CPU |
Memory
| Memory Type | DDR5 RDIMM / RDIMM-3DS |
| Memory Slots | 16 DIMM (8 + 8) |
| Max Memory Speed | Up to 5600 MT/s (5th Gen Xeon) |
Expansion Slots
| PCIe Slots | Multiple PCIe 5.0 x16, 1 × PCIe 5.0 x8 |
| M.2 Slot | M.2 PCIe 5.0 x4 |
| Expansion Connectors | MCIO, OCuLink |
Storage
| SATA Ports | Up to 13 × SATA |
| RAID Support | RAID 0 / 1 / 5 / 10 |
| VROC Header | Yes |
Networking
| LAN Controller | LAN Controller |
| Ethernet Ports | 2 × 10GbE RJ45 |
| Dedicated IPMI Port | Yes |
Management
| BMC Controller | ASPEED AST2600 |
| Remote Management | IPMI 2.0, KVM-over-IP |
Rear I/O / Connectivity
| Video Output | VGA (via AST2600) |
| USB | USB 2.0, USB 3.2 Gen1 header |
Monitoring & Headers
| Hardware Monitoring | CPU/PCH/Board temp, voltage, fan control |
| Fan Headers | 8 × Fan headers |
| TPM Header | Yes |
| SGPIO / PMBus | Yes |
Software / OS Support
| Supported OS | Windows Server 2022, RHEL, SUSE, Ubuntu, VMware ESXi 7.0/8.0 |
Environmental
| Operating Temperature | 10°C – 35°C |
Manufacturer Warranty
| Warranty | 3 Years |
