Technical Specifications
General Information

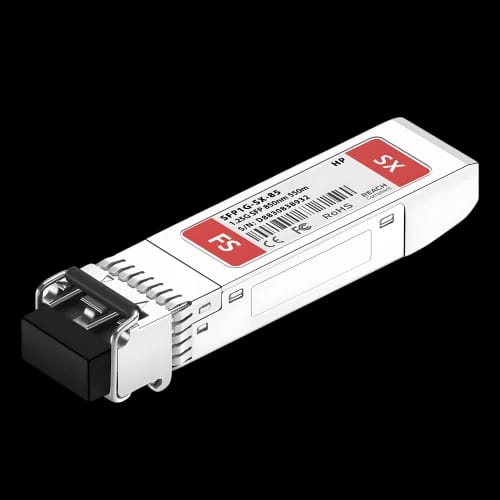

| Model | Aruba 1000BASE-SX SFP |
| Compatible Part Number | J4858D |
| Vendor Name | FS |
| Form Factor | SFP |
Performance
| Max Data Rate | 1.25Gbps |
| Wavelength | 850nm |
| Max Cable Distance | 550m @ 50/125µm OM2 MMF |
| Supported Distance | 275m @ 62.5/125µm OM1 MMF |
| Additional Distance | 220m @ 62.5/125µm FDDI MMF |
Optical Interface
| Connector | Duplex LC |
| Media Type | Multi-Mode Fiber (MMF) |
| Transmitter Type | VCSEL |
| Receiver Type | PIN |
Optical Performance
| TX Power | -9.5 ~ -3 dBm |
| Receiver Sensitivity | < -17 dBm |
| Receiver Overload | -3 dBm |
| Extinction Ratio | > 9 dB |
| Bit Error Ratio | 1E-12 |
Power & Environmental
| Typical Power Consumption | ≤ 0.8W |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| EMC Compatibility | Supported |
Monitoring & Standards
| Digital Diagnostics | DDM / DOM Supported |
| Protocols | IEEE 802.3z, SFF-8472, SFP MSA (INF-8074i) |
| MTBF | 2,457,002 Hours |
Warranty
| Warranty | Available via PCB Store Bangladesh |
