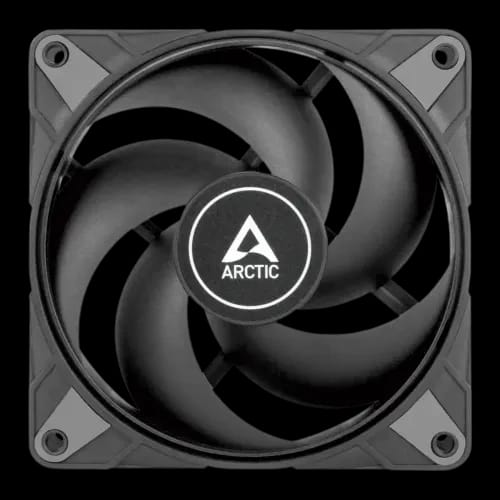

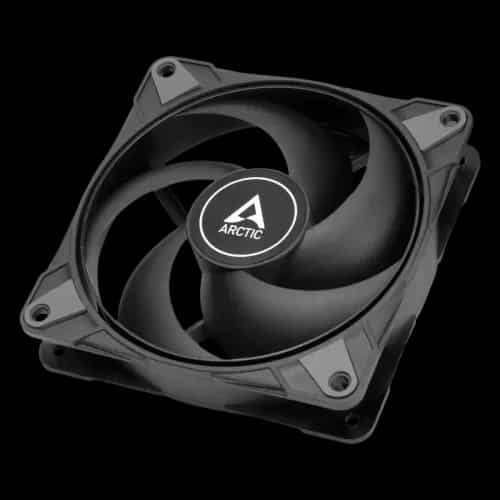

ARCTIC P12 Max 120mm Case Fan (Black)
Key Features
- Model: P12 Max
- Fan Connector: 4-pin PWM
- Airflow: 81.04cfm | 137.69m³/h
- Speed: 200–3300 RPM
- Bearing: Fluid Dynamic Bearing (FDB)
Out Of Stock
Share:
Technical Specifications
Fan Performance
Electrical Specification
Physical Specification
Warranty Information
Product Description
Heat spikes can throttle performance. Loud fans ruin focus. The ARCTIC P12 Max 120mm Case Fan (Black) targets both issues with high static pressure and controlled acoustics.
Built for demanding PC Components, this Casing Fan suits airflow-restricted builds. It fits gaming rigs, workstations, and airflow-focused upgrades available at PCB Store in Bangladesh.
ARCTIC P12 Max 120mm Case Fan (Black) Performance Overview
The ARCTIC P12 Max runs from 200 to 3300 RPM via PWM. It stops below 5% PWM. That means silent idle when your system rests.
It pushes 81.04 CFM airflow. It also delivers 4.35 mmH₂O static pressure. This balance supports both open airflow cases and dense radiator setups.
Noise levels reach 0.6 Sone at controlled speeds. You get strong cooling without harsh turbulence.
Core Performance Metrics
- Fan Speed: 200–3300 RPM (PWM)
- 0 RPM Mode: Below 5% PWM signal
- Airflow: 81.04 CFM / 137.69 m³/h
- Static Pressure: 4.35 mmH₂O
- Noise Level: 0.6 Sone
- Bearing: Fluid Dynamic Bearing (FDB)
This Arctic Casing Fan focuses on pressure and control. It suits performance-focused users who want airflow headroom.
ARCTIC P12 Max 120mm Case Fan (Black) Technical Build and Electrical Design
The fan runs on 12V DC. It draws 0.29A input current. Power demand remains modest even at high RPM.
It uses a 4-Pin PWM connector. That allows precise motherboard control. You can tune fan curves in BIOS or software.
The frame measures 120 × 120 × 25 mm. Weight is 184 g. The housing uses plastic with rubber elements for vibration reduction. The internal PCB supports stable operation.
Why Fluid Dynamic Bearing Matters
The ARCTIC P12 Max uses Fluid Dynamic Bearing (FDB) technology.
FDB reduces friction and mechanical wear. It improves lifespan and noise stability. It also handles long runtime loads better than basic sleeve designs.
For users building in Bangladesh’s warm climate, bearing durability matters. Continuous use in gaming or editing sessions demands reliability.
ARCTIC P12 Max 120mm Case Fan (Black) Key Features and Real Benefits
This model focuses on pressure efficiency. It performs well behind restrictive panels or dust filters.
High Static Pressure for Radiators and Mesh Front Panels
4.35 mmH₂O static pressure helps push air through:
- Liquid cooling radiators
- Tight front mesh cases
- Dense heatsinks
- Dust-filtered intake panels
That makes it suitable for performance cooling inside PC Components setups.
Wide RPM Range with 0 RPM Mode
The 200–3300 RPM range supports varied use.
At low loads, it stays nearly silent. Below 5% PWM, it stops completely. Under heavy gaming, it ramps aggressively to manage heat spikes.
Controlled Acoustics
At 0.6 Sone, the fan balances speed and noise. You avoid sudden pitch changes during ramp-up. That helps content creators and office users.
Durable 6-Year Warranty
ARCTIC backs this Casing Fan with a 6-year warranty. That shows confidence in its FDB motor and build quality.
Power Efficiency and Thermal Control in Real Systems
The ARCTIC P12 Max draws 0.29A at 12V DC. That equals modest power usage. Even multiple fans will not strain most motherboards.
PWM control prevents unnecessary high-speed operation. The fan responds only when thermal sensors demand airflow.
This approach reduces wear. It also reduces constant noise exposure.
In compact builds or high-TDP Graphics Card systems, airflow consistency prevents hotspot buildup. Strong intake or exhaust pressure improves thermal balance.
For users upgrading an Arctic setup from PCB Store, this fan fits modern airflow strategies.
Compatibility and Installation Flzexibility
The ARCTIC P12 Max uses standard 120mm mounting dimensions. It fits:
- Mid-tower PC cases
- Full tower enclosures
- Radiator mounts
- Air coolers supporting 120mm fans
The 4-Pin PWM connector works with most modern motherboards.
It suits gamers, editors, and system builders in Bangladesh who need airflow upgrades without replacing entire cooling systems.
Its black color blends with neutral builds. It pairs well with Arctic brand aesthetics inside performance rigs.
Reliability and Long-Term Confidence
Heat and dust shorten the fan's lifespan. That is common in tropical regions.
The Fluid Dynamic Bearing improves oil retention and shaft stability. It reduces grinding or rattling over time.
The 6-year warranty adds long-term security. It supports users investing in durable PC Components rather than short-term fixes.
ARCTIC has built a reputation around airflow engineering. This model reflects that focus.
Why Choose ARCTIC P12 Max 120mm Case Fan (Black) from PCB Store in Bangladesh?
Cooling upgrades often solve random crashes. They stabilize GPU boost clocks. They protect CPUs under load.
This Arctic Casing Fan fits both new builds and upgrades. It supports airflow tuning without excessive noise.
At PCB Store in Bangladesh, users can access genuine ARCTIC products. Local availability reduces risk and simplifies support.
If your case runs hot under gaming load, this fan offers a direct solution. If your radiator needs more pressure, this model delivers.
Stock can move quickly during peak build seasons. Consider securing yours before demand rises.
Delivery Charge Info
Inside Dhaka: ৳80
Outside Dhaka: ৳130
FAQs
What is the ARCTIC P12 Max 120mm Case Fan (Black)?
It is a high-performance 120mm PWM casing fan built for strong airflow and static pressure. It delivers 81.04 CFM, 4.35 mmH₂O pressure, and Fluid Dynamic Bearing reliability for gaming PCs and workstations.
What makes ARCTIC P12 Max 120mm Case Fan (Black) ideal for gamers?
It keeps gaming systems cool under heavy load with controlled noise. Its 200–3300 RPM PWM range and 0.6 Sone acoustics maintain stable CPU and GPU performance during extended sessions.
Where can I buy ARCTIC P12 Max in Bangladesh?
You can purchase it from PCB Store Bangladesh for genuine ARCTIC products. Local sourcing ensures warranty support and reduces risks of counterfeit cooling components.
How does ARCTIC P12 Max compare to Noctua NF-P12?
ARCTIC P12 Max offers higher RPM and stronger static pressure at a lower price. Noctua NF-P12 prioritizes ultra-quiet operation, while ARCTIC focuses on performance cooling and value.
Is ARCTIC P12 Max compatible with all PC cases?
Yes, it fits standard 120mm mounting slots in most mid-tower and full tower cases. The 4-Pin PWM connector works with modern motherboards and fan controllers.
Does ARCTIC P12 Max consume high power?
No, it operates at 12V DC with 0.29A current draw. This low power usage allows multiple fans without stressing motherboard headers or the power supply.
How does ARCTIC P12 Max handle thermal issues?
It improves heat dissipation using 81.04 CFM airflow and 4.35 mmH₂O pressure. This helps cool radiators, dense heatsinks, and dust-filtered intakes, reducing thermal throttling.
Is ARCTIC P12 Max noisy at high speeds?
No, it maintains controlled acoustics at around 0.6 Sone. PWM control prevents sudden noise spikes, making it suitable for quiet gaming and productivity environments.
What benefits does Fluid Dynamic Bearing provide?
It increases durability and reduces long-term noise. Fluid Dynamic Bearing minimizes friction, supports continuous operation, and performs reliably in warm, dust-heavy environments like Bangladesh.
