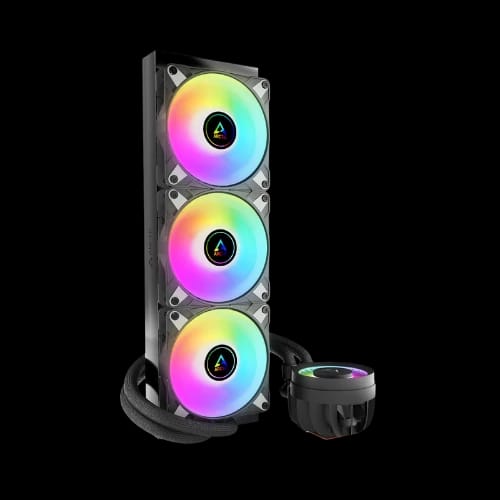

Technical Specifications
General Specifications
| Thermal Interface Material (TIM) | MX-6 (0.8 g) |
| Operating Ambient Temperature | 0—40 °C |
| LED Connector | 3-Pin A-RGB Connector |
| All-In-One Connector | 4-Pin PWM Connector |
| Split Connector | 3 × 4-Pin PWM Connector |
| Weight | 1870 g |
| Color | Black |
Compatibility
| Intel | 1851 / 1700 |
| AMD | AM5 / AM4 |

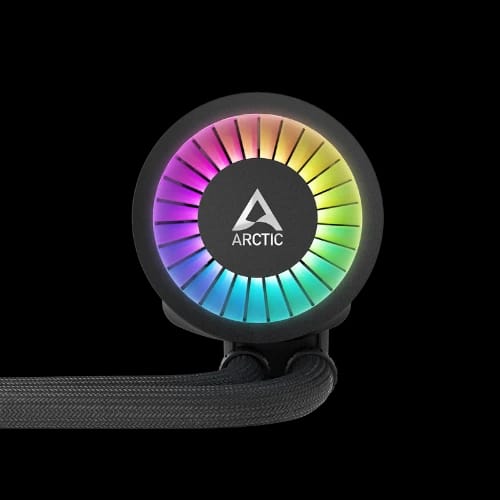

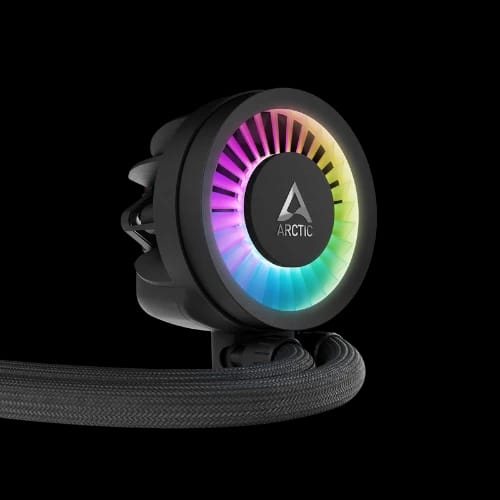

Pump Specifications
| Pump Speed | 800—2800 RPM (PWM Controlled) |
| Cold Plate | Copper, Micro Skived Fins |
| Tube Length | 450 mm |
| Tube Diameter | Outer: 12.4 mm / Inner: 6.0 mm |
Radiator Specifications
| Material | Aluminum |
| Dimensions (L × W × H) | 398 × 120 × 38 mm |
VRM Module Specifications
| VRM Fan Speed | 400—2500 RPM (PWM Controlled) |
| LED Count | 12 × A-RGB LEDs |
Fan Specifications
| Type | 3 × P12 PWM PST A-RGB |
| Speed Range | 200—2000 RPM |
| Airflow | 48.82 CFM |
| Static Pressure | 1.85 mm H₂O |
| Bearing Type | Fluid Dynamic Bearing |
| Cable Length | 40 mm |
| Connector Type | 4-Pin PWM Connector |
RGB Specifications
| LED Count | 12 × A-RGB LEDs |
| Cable Length | 40 mm + 80 mm Splitter Cable |
| Connector Type | 3-Pin A-RGB Connector + 3-Pin Plug |
Warranty Information
| Warranty | 06 Years |
