Technical Specifications
General Information

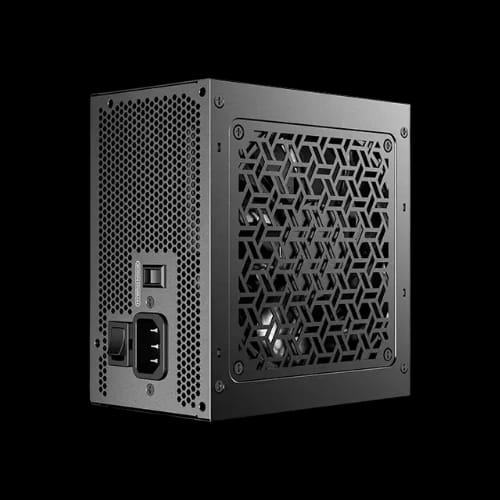

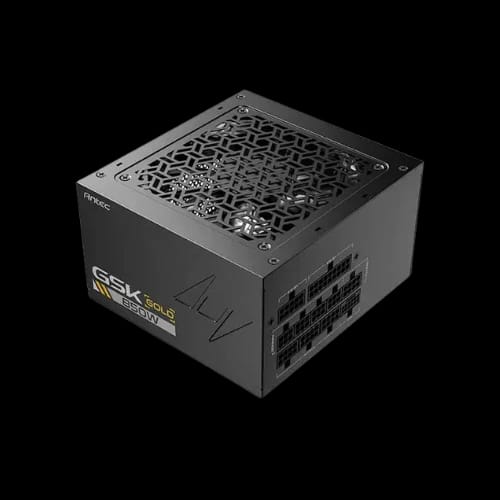

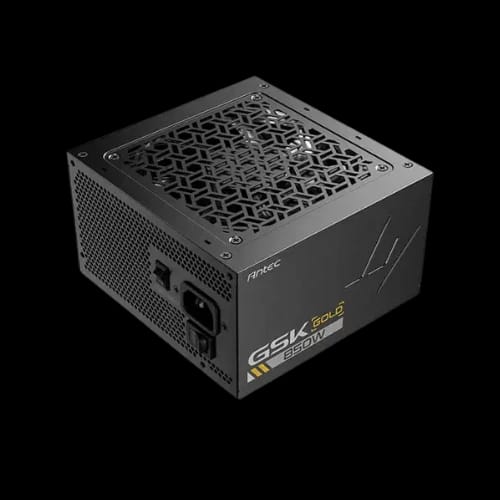

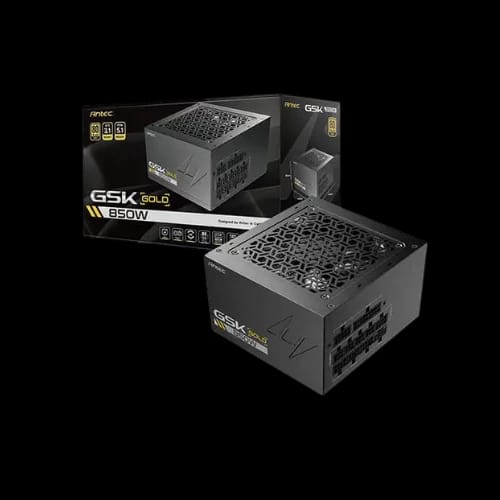

| Product Name | Antec GSK 850W 80+ Gold ATX3.1 Full Modular Power Supply |
| Category | PC Component |
| Sub-Category | Power Supply |
Power & Efficiency
| Total Power | 850W |
| Certification | 80 Plus Gold |
| Active PFC | Yes |
Input Specifications
| Input Voltage | 100V–240V |
| Frequency Range | 50Hz–60Hz |
| Input Current | 10A Max |
Cooling & Thermal
| Fan Size | 120mm Silent Fan |
| Operating Temperature | 0°C – 40°C |
Cabling & Modularity
| Modular Type | Full Modular |
Connectors
| Motherboard | 1 × 24 (20+4) Pin |
| CPU | 2 × 8 (4+4) Pin |
| PCIe 5.1 | 1 × 16 (12+4) Pin 12VHPWR |
| PCIe | 4 × 8 (6+2) Pin |
| SATA | 8 × SATA |
| Molex | 4 × Molex |
Protection Features
| Electrical Protection | OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO |
| Power Good Signal | 100–150ms |
Compliance & Warranty
| Regulatory Certifications | cTUVus, TUV, CB, RCM, CE, FCC, BSMI, KC, UKCA, ICES |
| Warranty | 10 Years Replacement (Including Burn Cases) |
