Technical Specifications
Processor & Platform

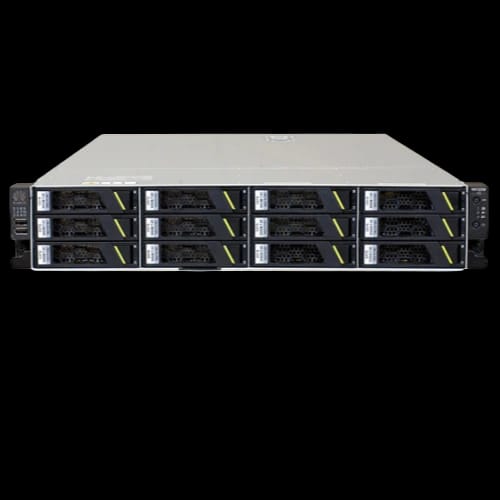

| Server Model | Huawei RH2288 V2 |
| CPU | Dual Intel Xeon E5-2680 V2 |
| Cores / Threads | 10 Cores / 20 Threads (Per CPU) |
| Architecture | 64-bit |
| CPU Socket | Dual Socket |
Memory Configuration
| Installed RAM | 128GB DDR3 ECC |
| Memory Slots | 24 DIMM Slots |
| Maximum Capacity | Up to 128GB |
| Memory Type | Registered ECC |
Storage & Cache
| Installed HDD | 6× 12TB 3.5″ LFF SAS |
| Total Capacity | 72TB Raw |
| SAS Interface | 12Gb/s |
| OS Drive | 2× 300GB 2.5″ SAS |
| Read Cache | 2× 256GB M.2 NVMe |
| Write Cache | 2× 256GB M.2 NVMe |
Drive Bays
| LFF Bays | 12× 3.5″ |
| SFF Bays | 2× 2.5″ |
| Hot-Swap Support | Yes |
Networking
| High-Speed LAN | 1× 10G SFP |
| Standard LAN | 4× 1G RJ45 |
| Network Redundancy | Supported |
Power & Reliability
| Power Supply | 2× 750W |
| PSU Type | Redundant |
| Continuous Operation | 24/7 Rated |
Physical & General
| Form Factor | 2U Rackmount |
| Dimensions | 3.44″ × 17.60″ × 29.13″ |
| Weight | Approx. 20 kg (Barebone) |
Warranty Information
| Warranty | 1 Year (These are enterprise-grade servers utilized in data center environments.] |
