Technical Specifications
Server Platform

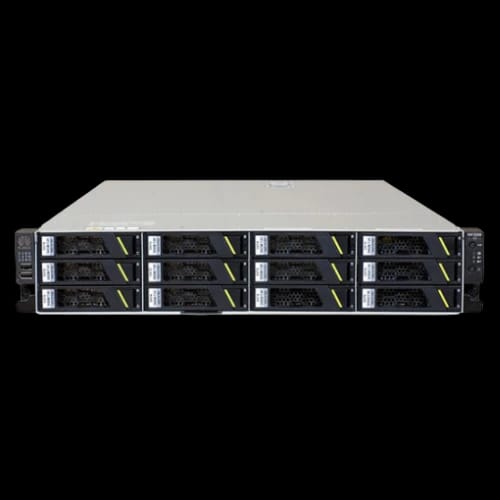

| Barebone Model | Huawei RH2288 V2 |
| Form Factor | 2U Rackmount |
Processor
| CPU Model | Dual Intel Xeon E5-2680 V2 |
| Cores / Threads | 10 Cores, 20 Threads per CPU |
| Total Processing | 20 Cores, 40 Threads |
| CPU Architecture | Ivy Bridge-EP |
Memory
| Installed RAM | 128GB DDR3 ECC |
| Memory Slots | 24 DIMM Slots |
| Maximum Capacity | Up to 384GB |
| Memory Type | Registered ECC |
Storage Configuration
| Total Capacity | 192TB Raw |
| Hard Drives | 12× 16TB LFF 3.5" |
| Drive Interface | SAS 12Gb/s |
| Drive Bays | 12× LFF, 2× SFF |
OS & Cache Drives
| OS Drive | 2× 300GB 2.5" SAS |
| Read Cache | 2× 256GB M.2 NVMe SSD |
| Write Cache | 2× 256GB M.2 NVMe SSD |
Networking
| High-Speed NIC | 1× 10G SFP |
| Standard NIC | 4× 1G RJ45 |
Expansion & I/O
| PCIe Slots | Standard PCIe Expansion |
| Drive Support | Hot-Swap Supported |
Power Supply
| Power Unit | 2× 750W |
| Power Redundancy | Supported |
Physical Dimensions
| Height | 3.44 inches |
| Width | 17.60 inches |
| Depth | 29.13 inches |
Weight
| Net Weight | Approx. 20 kg |
| Weight Note | Barebone Only |
Deployment
| Usage Type | Enterprise / Data Center |
| Operating Mode | 24/7 Continuous Operation |
