Technical Specifications
Graphics Core
| GPU Model | NVIDIA GeForce RTX 5060 |
| CUDA Cores | 3840 |
| AI Performance | 614 AI TOPS |
Memory
| Memory Size | 8GB |
| Memory Type | GDDR7 |
| Memory Bus | 128-bit |
| Memory Speed | 28 Gbps |
Clock & Performance
| Boost Clock | 2527 MHz |
Interface
| PCI Express | PCIe 5.0 x8 |

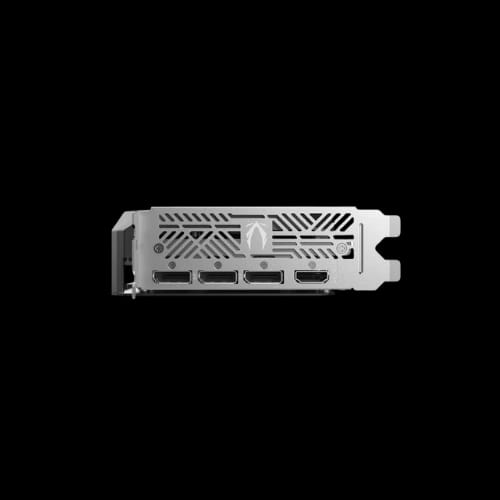

Display Output
| Display Ports | 3 x DisplayPort 2.1b |
| HDMI Port | 1 x HDMI 2.1b |
| Max Resolution | Up to 8K |
| Multi Display | Quad Display |
| HDCP Support | 2.3 |
Power
| Recommended PSU | 550W |
| Power Consumption | 145W |
| Power Connector | 1 x 8-pin |
Software & API
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Supported OS | Windows 10/11 64-bit |
Cooling & Design
| Cooling Type | Air Cooled |
| Slot Size | 2 Slot |
| Card Dimensions | 220.5mm x 120.25mm x 41.6mm |
Additional
| SLI Support | No |
| Accessories | User Manual |
Warranty Information
| Warranty | 3+2 Year Warranty (register online within 28 days of purchase) |
