Technical Specifications
Product Identity
| Brand | Yamaha |

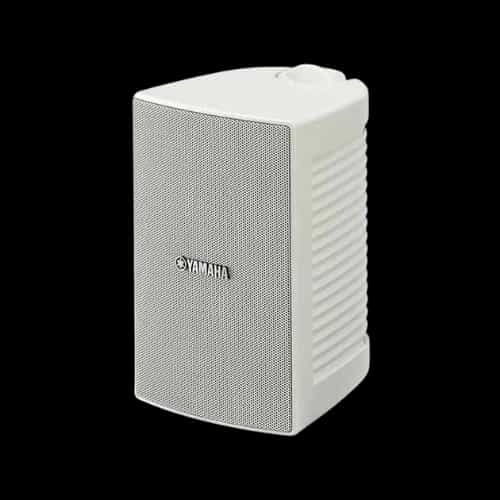

| Model | VS6W |
| Color | White |
| Body Material | HIPS, 94-HB Cabinet |
Audio Performance
| Maximum Power | 100W |
| Program Power | 50W |
| Frequency Response | 80Hz - 20kHz |
| Sensitivity | 90dB SPL |
| Max SPL | 110dB SPL |
| Nominal Impedance | 8 Ohms |
Transducers
| LF Driver | 6.5" Cone |
| HF Driver | 1" Balanced Dome |
| Crossover Frequency | 15kHz (Passive) |
System Features
| Protection | IPX3 Splash Proof |
| Coverage Angle | 90° H x 90° V |
| Connectors | 2 pairs Barrier Strip |
Transformer Taps
| 70V Line | 25W, 12.5W, 6.3W, 3.1W |
| 100V Line | 25W, 12.5W, 6.3W |
Physical Specs
| Dimensions | 308 x 219 x 190mm |
| Weight | 2.8 kg |
Service
| Warranty | No Warranty |
