Technical Specifications
General Info

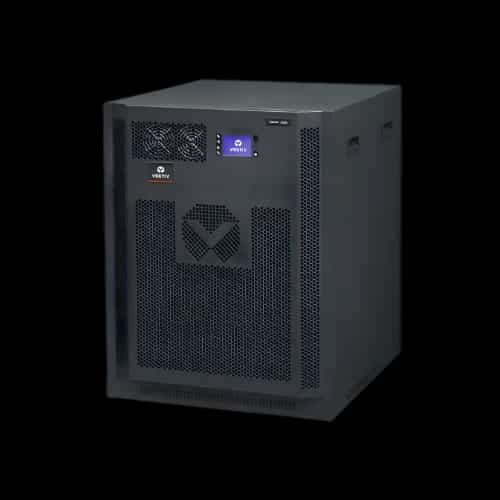

| Product Model | Liebert S600 |
| Capacity | 20 KVA / 20000W |
| Power Factor | 1.0 (Unity) |
| Rectifier Type | IGBT Rectifier |
Input Specs
| Input Voltage Range | Three-Phase 228Vac-478Vac |
| Input Frequency | 40 Hz - 70 Hz |
| Rated Voltage | 400Vac (3-Phase 4-Wire) |
Output Specs
| Output Voltage | Single-phase 220/230/240 Vac |
| Waveform | Pure Sine Wave |
| Transfer Time | 0 ms (Zero) |
| Efficiency | Up to 91% (AC Mode) |
Battery & Charging
| Battery Quantity | 32 (Selectable) |
| Charging Current | 8A |
| Float Voltage | 274 VDC ± 1% |
| Backup Type | External Battery Cabinet |
Protection & Management
| Isolation Transformer | Internal / Built-in |
| Protection Level | IP 20 |
| Communication | SNMP Manager & Web Browser |
| Alarms | Low Battery, Overload, Fault |
Physical Dimensions
| Unit Weight | 138 Kgs |
| Dimensions (LxWxH) | 550 x 620 x 700 mm |
Warranty
| Service Warranty | 1 Year Warranty |
