Technical Specifications
General

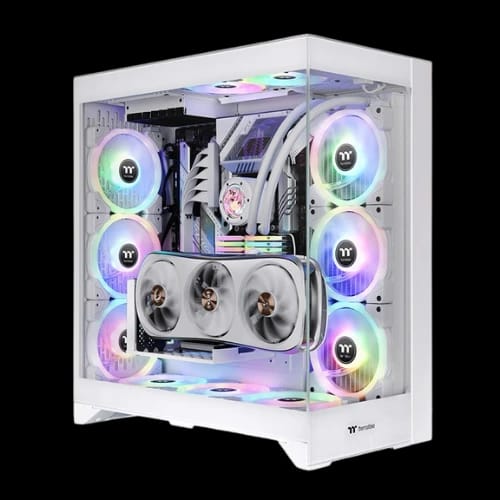

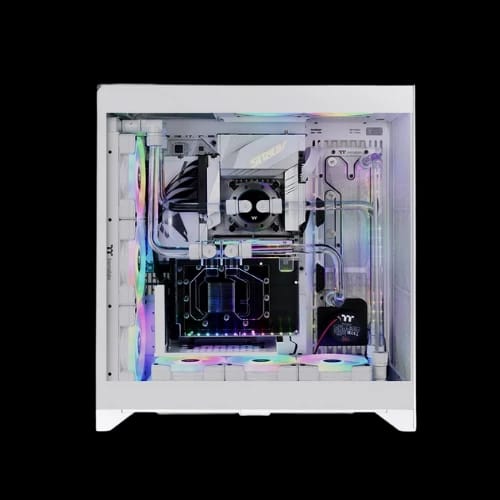

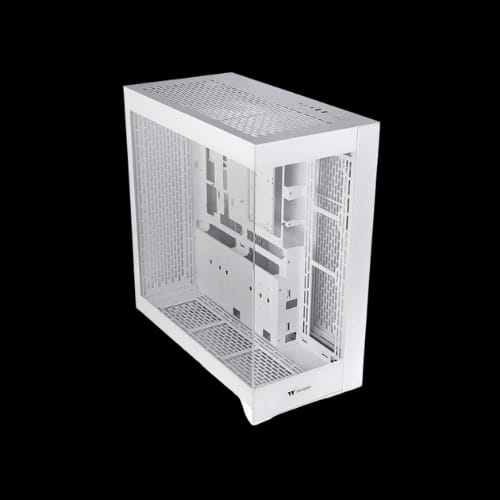

| Product Name | Thermaltake CTE E660 MX Mid Tower Desktop Case (Snow) |
| P/N | CA-1Y3-00M6WN-01 |
| Series | CTE |
| Case Type | Mid Tower |
| Color | White |
| Material | SPCC |
| Net Weight | 15.85 kg / 34.94 lbs |
| Panel | 4mm Tempered Glass × 2 |
Dimensions
| Dimensions (H × W × D) | 558.5 × 270 × 513 mm |
| Dimensions (inch) | 21.99 × 10.63 × 20.2 in |
Motherboard Support
| Mini-ITX | 6.7" × 6.7" |
| Micro-ATX | 9.6" × 9.6" |
| ATX | 12" × 9.6" |
| E-ATX | 12" × 10.5" |
Drive Bays
| 3.5" Bays | 3 × 3.5" or 2 × 3.5" |
| 2.5" Bays | 1 × 2.5" or 2 × 2.5" |
Expansion
| Expansion Slots | 7 |
I/O Ports
| USB 3.0 | 2 × USB 3.0 |
| USB Type-C | 1 × Type-C |
| Audio | 1 × HD Audio |
PSU
| PSU Support | Standard PS2 PSU (optional) |
| PSU Max Length | 220 mm |
Fan Support
| Front | 3 × 120mm / 3 × 140mm |
| Top | 2 × 120mm |
| Right (M/B Side) | 3 × 120mm / 3 × 140mm |
| Rear | 3 × 120mm / 3 × 140mm |
| Bottom | 3 × 120mm / 3 × 140mm |
Radiator Support
| Front | 360mm / 240mm / 120mm / 420mm / 280mm / 140mm |
| Top | 240mm / 120mm |
| Right (M/B Side) | 360mm / 240mm / 120mm / 420mm / 280mm / 140mm |
| Rear | 360mm / 240mm / 120mm / 420mm / 280mm / 140mm |
| Bottom (DIY Only) | 360mm / 240mm / 120mm / 420mm / 280mm / 140mm |
Clearance
| CPU Cooler Height | 166 mm |
| VGA Length (with radiator) | 415 mm |
| VGA Length (without radiator) | 443.8 mm |
