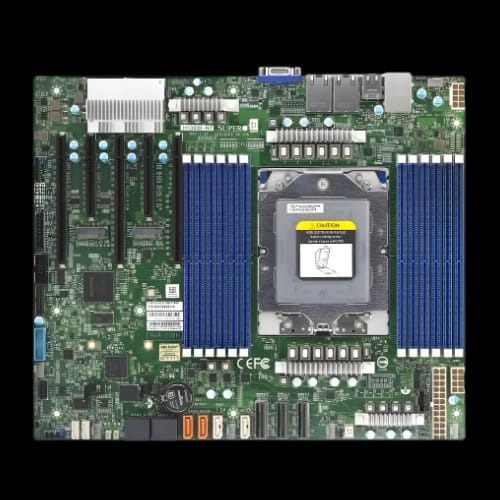

Supermicro H13SSL-NT SP5 DDR5 ATX Motherboard

Product Description

Is Your Server Struggling With Data Bottlenecks? Solve It With the Supermicro H13SSL-NT SP5 DDR5 ATX Motherboard

Does your current server infrastructure fail to handle massive computational loads? The Supermicro H13SSL-NT SP5 DDR5 ATX Motherboard addresses high-latency issues in modern data centers. This board provides the raw speed needed for enterprise applications. It integrates with the latest AMD EPYC processors to eliminate performance gaps.

Advanced Performance with Single Socket SP5 Architecture

The core of the Supermicro H13SSL-NT lies in its Single Socket SP5 design. This socket supports AMD EPYC 9004 and 9005 Series processors. These CPUs handle demanding tasks with ease. You can utilize up to 160 cores and 320 threads on a single board. Such density is vital for virtualization and cloud computing.

Power delivery remains stable even under heavy stress. This motherboard supports CPUs with a TDP up to 400W. High-power chips require precise voltage regulation. Supermicro implements top-tier VRM components to maintain efficiency. This ensures your server stays operational during peak traffic hours in Bangladesh.

Massive Memory Capacity for Data-Intensive Workloads

Memory bandwidth often limits server output. The Supermicro H13SSL-NT features 12 DIMM slots. It utilizes DDR5 technology for faster data transfer rates. You can install RDIMM sizes ranging from 16GB to 256GB. This allows for a massive total RAM footprint.

Error correction is a priority for any professional Motherboard in this category. The system corrects single-bit errors automatically. It also detects double-bit errors using ECC memory. This reliability prevents system crashes during critical calculations. Data integrity stays protected at all times.

High-Speed Connectivity and Networking Features

Networking is a standout feature for the Supermicro H13SSL-NT SP5 DDR5 ATX Motherboard. It includes a Dual LAN setup with the Broadcom BCM57416 controller. This provides 10GBase-T speeds for rapid data movement. It is a perfect fit for high-speed local networks in corporate environments.

There is also a dedicated IPMI LAN port. This uses the Realtek RTL8211F PHY for remote management. Administrators can monitor the board without physical access. This is essential for large-scale deployments at PCB Store.

Dual 10GbE Ports: Fast networking for server clusters.

PCIe 5.0 Support: Twice the bandwidth of the previous generation.

MCIO Ports: High-density cabling options for storage.

Dedicated IPMI: Reliable out-of-band management.

Expansion Slots and Storage Versatility

The Supermicro H13SSL-NT offers plenty of expansion. It includes three PCIe 5.0 x16 slots. These are ideal for high-end GPUs or FPGA cards. Two additional PCIe 5.0 x8 slots provide more room for controllers.

Storage options are equally impressive. There are two M.2 PCIe 5.0 x4 slots. These support both SATA and NVMe drives. They fit 2280 and 22110 form factors. You also get two SuperDOM ports. These are useful for booting operating systems without using main drive bays.

Enterprise Management and Security Tools

Managing a PC Components setup at scale requires the right software. Supermicro provides a full suite of tools. You get access to Supermicro Server Manager (SSM) and SuperCloud Composer. These tools simplify firmware updates and health monitoring.

Security is handled via a TPM 2.0 Header. This hardware-based security protects your boot process. The board also features Root of Trust (RoT) capabilities. It monitors voltages for +12V, +5V, and +3.3V rails. Thermal sensors track CPU and VRM temperatures constantly.

Reliable Infrastructure for Bangladesh Enterprises

Stability is the hallmark of the Supermicro H13SSL-NT. It uses a standard ATX form factor. This makes it compatible with many server chassis. The layout is optimized for airflow. Six 4-pin fan headers allow for granular cooling control.

This board is a smart investment for local businesses. Whether you are building a storage server or a compute node, this Motherboard delivers. It combines AMD EPYC power with Supermicro’s legendary build quality.

Secure Your Supermicro H13SSL-NT Today

Are you ready to upgrade your server performance? The Supermicro H13SSL-NT SP5 DDR5 ATX Motherboard is available now. Experience the power of PCIe 5.0 and 10GbE networking. Visit PCB Store in Bangladesh to get the best deal. Stock is often limited for these high-demand enterprise boards. Buy now to ensure your business stays ahead of the curve.
