Technical Specifications
Clock & Memory
| Clock Speed | Base: 2407 MHz || Boost: 2692 MHz |
| Memory | 16GB GDDR7 |
| Memory Interface | 128-bit |
| Memory Bandwidth (GB/sec) | 448 |
| Memory Speed (Gbps) | 28 |
Display & Interface
| Outputs | 3× DisplayPort 2.1b, 1× HDMI 2.1b, 4-Screen Support, 8K@165Hz |
| Bus Type | PCIe 5.0 x8, NVLink: Not Supported |
Power & Requirements
| Power | TDP: 180W |
| PSU Required | 600W |
| Power Input | 1× 8-pin |
Physical & Compatibility
| Card Size | 9.65" × 4.72" × 1.57" (2-slot), Box: 12.68" × 7.05" × 2.76" |
| OS Support | Windows 10/11 64-bit, Linux 64-bit, PCIe x8 Motherboard Required |
General Information

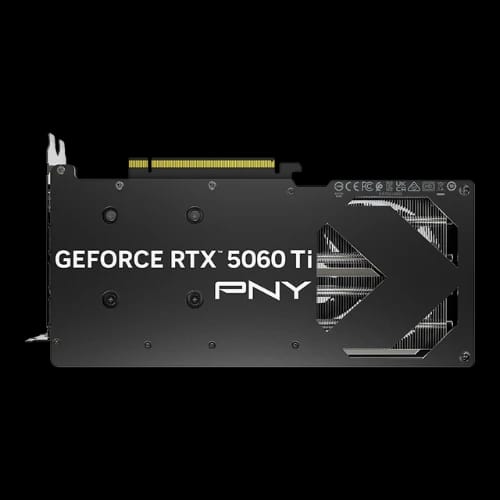

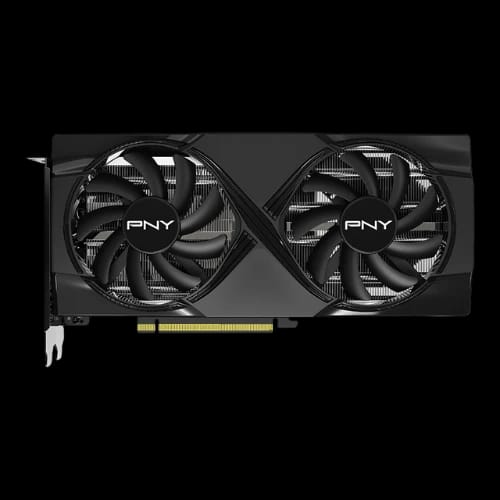

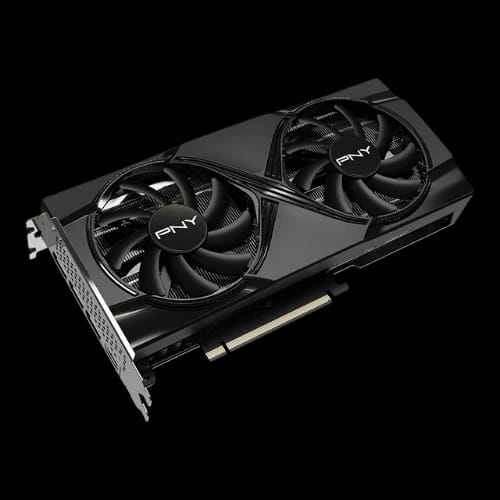

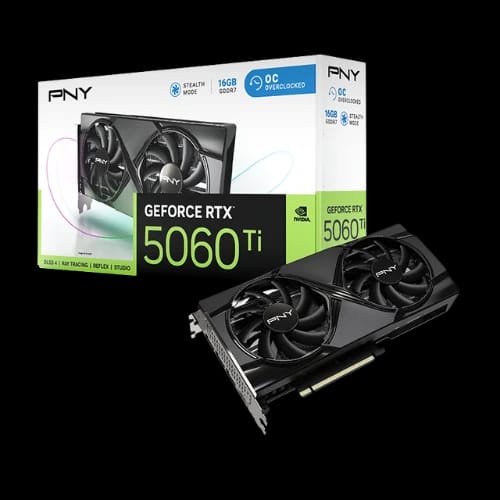

| Model & Arch | PNY RTX 5060 Ti 16GB OC Dual Fan, NVIDIA Blackwell, CUDA: 4608 |
| CUDA® Cores | 4608 |
Warranty Information
| Warranty | 03 Years |
