Technical Specifications
General

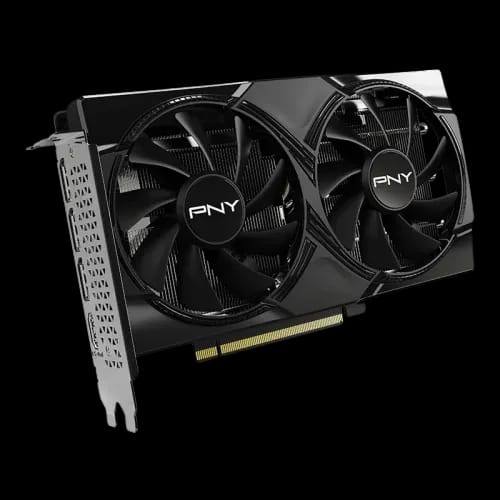

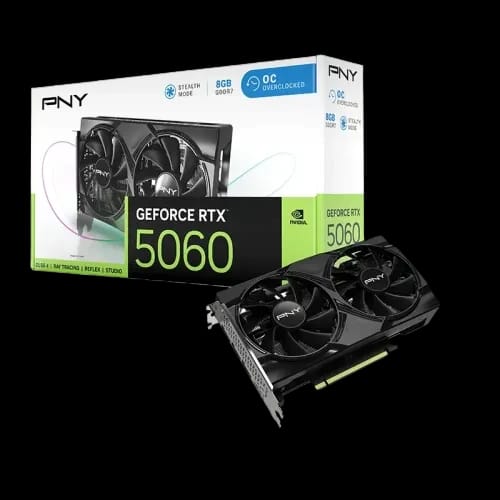

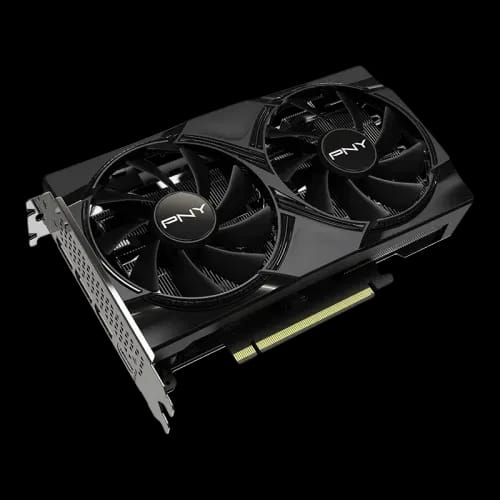

| Model | PNY GeForce RTX 5060 8GB OC Dual Fan |
| Architecture | NVIDIA Blackwell, CUDA Cores: 3840 |
Performance
| Clock Speeds | Base: 2280 MHz, Boost: 2535 MHz |
| Memory | 8GB GDDR7 |
| Memory Speed (Gbps) | 28 |
| Memory Interface | 128-bit |
| Memory Bandwidth (GB/sec) | 448 |
Display & Connectivity
| Ports & Display | 3× DP 2.1b, 1× HDMI 2.1b, Max 4 Monitors, 8K@165Hz |
| Bus Type | PCI-Express 5.0 x8 |
Power & Cooling
| Power Input | 8-pin, TDP: 145W, Recommended PSU: 550W |
Dimensions & Compatibility
| Size & Slots | Card: 280×120×40 mm, 2-slot; Box: 382×179×70 mm |
| OS Support | Windows 10/11 64-bit, Linux 64-bit, PCIe x8 slot |
Warranty Information
| Warranty | 03 Years |
