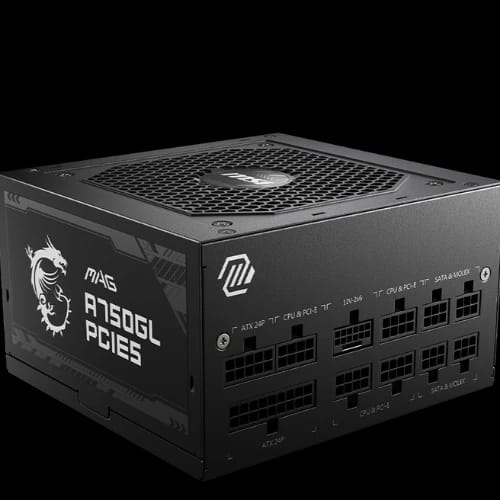

msi mag a750gl pcie5 750w 80 plus gold full modular power supplymain

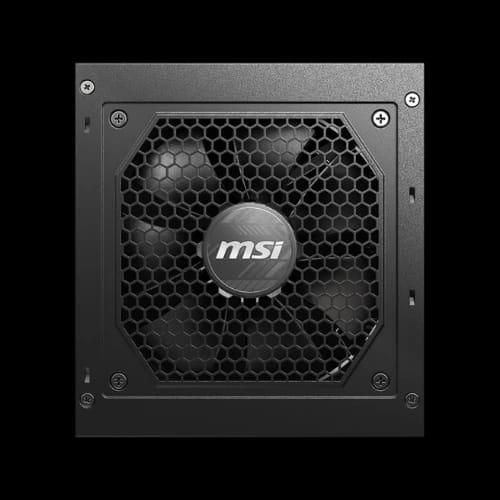

msi mag a750gl pcie5 750w 80 plus gold full modular power supplyfront
msi mag a750gl pcie5 750w 80 plus gold full modular power supplyports

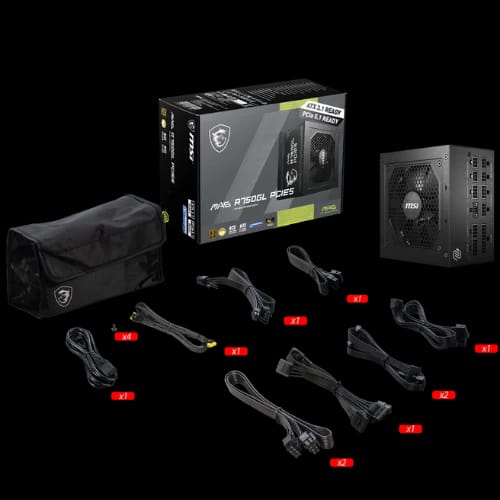

msi mag a750gl pcie5 750w 80 plus gold full modular power supplyfull set
/ PC Components / Power Supply / MSI / MSI MAG A750GL PCIE5 750W 80 Plus Gold Full Modular Power Supply

MSI MAG A750GL PCIE5 750W 80 Plus Gold Full Modular Power Supply

Key Features

  • MSI MAG A750GL PCIE5
  • 750W Output Capacity
  • 80 Plus Gold Efficiency
  • Fully Modular Design
  • ATX 3.1 & PCIe 5.1 Ready
  • 10-Year Warranty


Share:

Technical Specifications

General Specifications

ModelMAG A750GL PCIE5CategoryPower Supply Unit (PSU)Efficiency Rating80 Plus Gold (up to 90%)

Design & Build

Modular TypeFully ModularATX StandardATX 3.1 ReadyPCIe StandardPCIe 5.1 ReadyDimensionsStandard ATX Form Factor

Cooling System

Fan Size120 mmFan BearingFluid Dynamic Bearing (FDB)

Protection Features

Over Current ProtectionYesOver Voltage ProtectionYesOver Power ProtectionYesOver Temperature ProtectionYesShort Circuit ProtectionYesUnder Voltage ProtectionYes

Input

Voltage100~240 VACFrequency Range47-63Hz

Output

Modular TypeFully ModularTotal Power750W

Connector

Main PowerATX (24 pin) x1CPUEPS (4+4 pin) x2PCI-EPCI-E 5.0 (16 pin) x1 (450W) , PCI-E (6+2 pin) x3SATASATA CONNECTOR x 8Molex4FloppyFDD (4 pin) x 1

Warranty Information

Manufacturing Warranty10 Years
