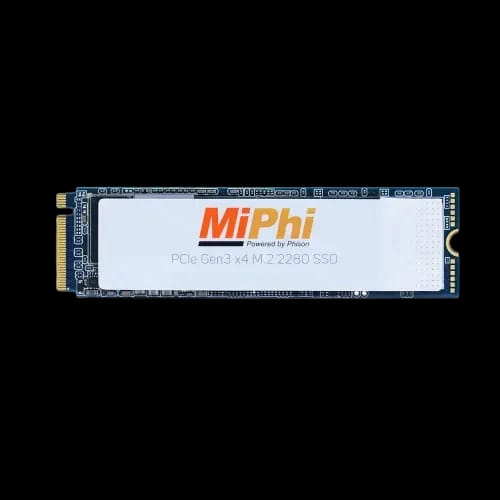

Technical Specifications
Key Features
| Capacity | 512GB |
| Form Factor | M.2 2280 |
| Flash Type | 3D TLC NAND |
| Interface | PCIe Gen 3.0 ×4, NVMe 1.4 |
| Controller | High-performance NVMe Controller |
| Sequential Read Speed | Up to 3,400 MB/s |
| Sequential Write Speed | Up to 3,000 MB/s |
| TBW (Total Bytes Written) | 300TB |
Performance
| 4K Random Read | Up to 400K IOPS |
| 4K Random Write | Up to 700K IOPS |
| Operating Temperature | 0°C ~ 85°C |
| Non-Operating Temperature | -40°C ~ 85°C |
Reliability
| MTBF (Mean Time Between Failures) | 1,800,000 hours |
| ECC Support | LDPC (Low-Density Parity Check) Error Correction |
| SMART Support | Yes |
| TRIM Support | Yes |
| NCQ (Native Command Queuing) | Supported |
| End-to-End Data Path Protection | Supported |
| Power Loss Protection | Supported (Firmware-Based) |
Power Consumption
| Active Read/Write | 2.8W / 3.5W (Typical) |
| Idle | 0.03W |
Physical Specification
| Category | Details |
| Dimension (L × W × H) | 80mm × 22mm × 2.2mm |
| Weight | 7g |
Environmental Conditions
| Humidity | 5% ~ 95% (non-condensing) |
Shock & Vibration Resistance
| Category | Details |
| Shock Resistance | 1500G, duration 0.5ms, Half Sine Wave |
| Vibration Resistance | 10–2000Hz, 1.5mm, 20G, 1 Oct/min, 30min/axis (X, Y, Z) |
Compatibility
| Category | Details |
| Supported OS | Windows 10/11, macOS, Linux |
| Application | Laptops, Desktops, Ultrabooks |
Warranty
| Warranty | 5 Years |
