Technical Specifications
GENERAL INFORMATION

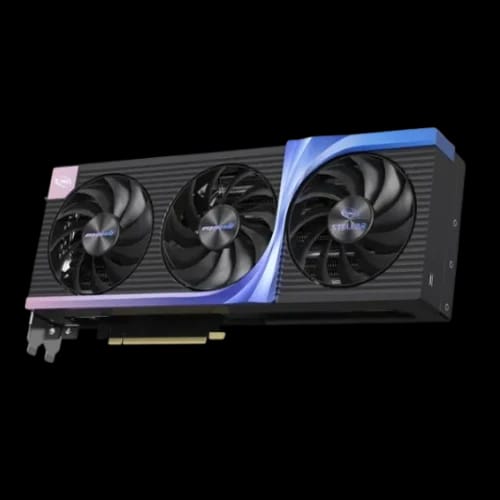

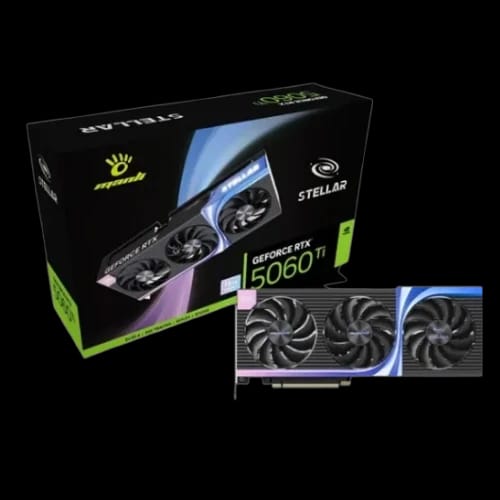

| Product Name | Manli Black Stellar GeForce RTX 5060 Ti OC |
| Model Number | M-N506TISO/D716G-M3648 |
| Series | Stellar |
| GPU Architecture | NVIDIA Ada Generation |
| Manufacturing Process | Advanced NVIDIA Process |
| PCB Design | Custom Manli Stellar PCB |
PERFORMANCE
| Base Clock | 2407MHz |
| Boost Clock | 2632MHz |
| CUDA Cores | 4608 |
| Ray Tracing Cores | Next-Gen RT Cores |
| Tensor Cores | AI-Optimized Tensor Cores |
| Graphics Power | 180W |
| Max GPU Temperature | 87°C |
| DirectX Support | DirectX 12 Ultimate |
| OpenGL Support | OpenGL 4.6 |
| Vulkan Support | Vulkan API Supported |
MEMORY
| Memory Capacity | 16GB GDDR7 |
| Memory Speed | 28.0Gbps |
| Memory Interface | 128-bit |
| Memory Bandwidth | Up to 448GB/s |
| Memory Type | High-Efficiency GDDR7 |
| VRAM Cooling | Memory Thermal Pad Solution |
COOLING & DESIGN
| Cooling System | Heatsink with Triple Cooler |
| Fan Count | 3 Fans |
| Fan Type | High-Static Pressure Cooling Fans |
| Heatsink Type | Dense Aluminum Fin Array |
| Slot Design | 3-Slot |
| Card Dimensions | 315 × 127 × 53mm |
DISPLAY OUTPUTS
| DisplayPort | 3 × DisplayPort |
| HDMI | 1 × HDMI |
| Multi-Monitor Support | Yes |
| Max Digital Resolution | 8K Supported |
| HDCP Support | HDCP 2.3 |
POWER & SYSTEM REQUIREMENTS
| Recommended PSU | 550W or higher |
| Power Connectors | Standard GPU Connectors |
| PCIe Interface | PCIe Standard Compatible |
| System Compatibilityc | ATX / mATX / Mid-Tower Cases |
Warranty Information
| Warranty | 03 Years |
