Technical Specifications
General Information

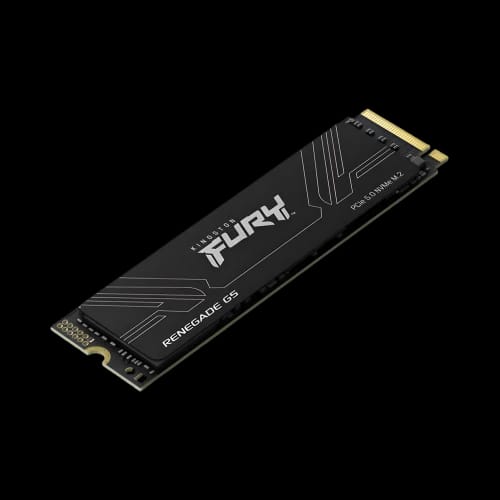

| Brand | Kingston |
| Series | FURY Renegade |
| Model | FURY Renegade 2TB |
| Type | NVMe M.2 Solid State Drive |
| Interface | PCIe 5.0 x4 (NVMe 2.0) |
| Form Factor | M.2 2280 |
| Capacity | 2TB |
| NAND Flash Type | 3D TLC |
| Controller | Silicon Motion SM2508 |
| DRAM Cache | DDR4 DRAM Cache |
| Color | Black |
Performance
| Sequential Read Speed | Up to 14,700 MB/s |
| Sequential Write Speed | Up to 14,000 MB/s |
| TBW (Total Bytes Written) | 2,000 TB |
| MTBF | 2,000,000 Hours |
| Random 4K R/W | Up to 2,200,000 IOPS |
Reliability & Endurance
| NAND Type | 3D TLC NAND |
| Error Correction | LDPC ECC & End-to-End Data Path Protection |
| Data Protection | Static & Dynamic Wear Leveling |
| Thermal Control | Dynamic Smart Thermal Throttling |
| SMART Support | Yes |
| DirectStorage | Supported (optimized for PS5) |
Physical Specifications
| Dimensions | 80 x 22 x 2.3 mm |
| Weight | 7.7 g |
| Form | Single-Sided PCB |
| Build Type | Compact M.2 2280 design |
| PCB Layering | 12-layer PCB |
Environmental Conditions
| Operating Temperature | 0°C – 70°C |
| Storage Temperature | -40°C – 85°C |
| Vibration (Operating) | 2.17G peak (7–800Hz) |
| Vibration (Non-Operating) | 20G peak (20–1000Hz) |
| Humidity | 5% – 95% (Non-Condensing) |
| Shock Resistance | 1500G (0.5ms) |
Certifications
| Compliance | CE, FCC, RoHS, BSMI, RCM Certified |
Warranty Information
| Warranty | 5 Years Limited Warranty |
