Technical Specifications
Model Information
| Synchronization | 5V 3-Pin Addressable Header |

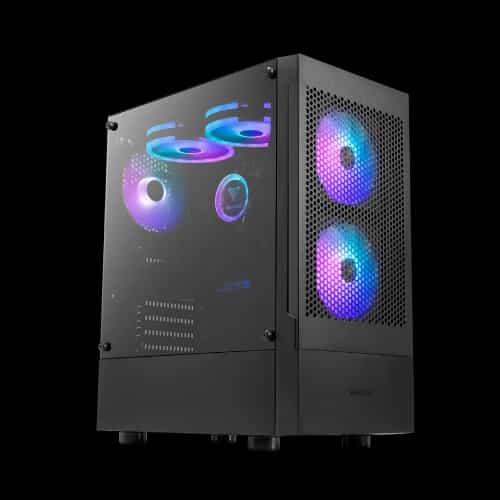

| Model | TALOS E3 MESH |
| Case Type | Mid Tower |
| Case Color | Black |
Motherboard & Compatibility
| Motherboard Support | ATX, Micro-ATX, Mini-ITX |
Build & Design
| Material | SPCC + ABS + Tempered Glass |

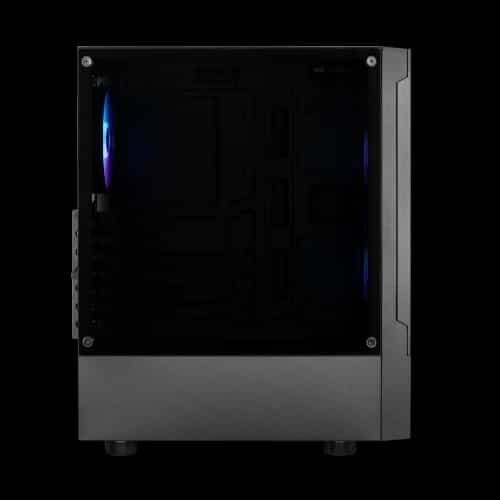

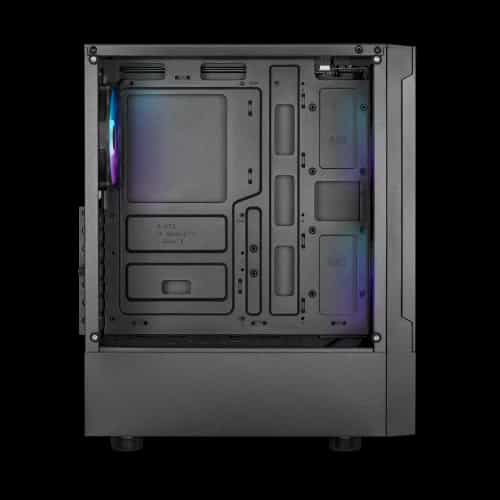

| Window Panel | Left Side |
| Expansion Slots | 7 |
Cooling & Radiator Support
| Fan Support | Top: 2 x 120mm / Front: 2 x 120mm、 2 x 140mm / Rear: 1 x 120mm |
| Radiator Support | Top: 240mm / Front: 360mm (The removement of HDD cage is suggested)、280mm / Rear: 120mm |

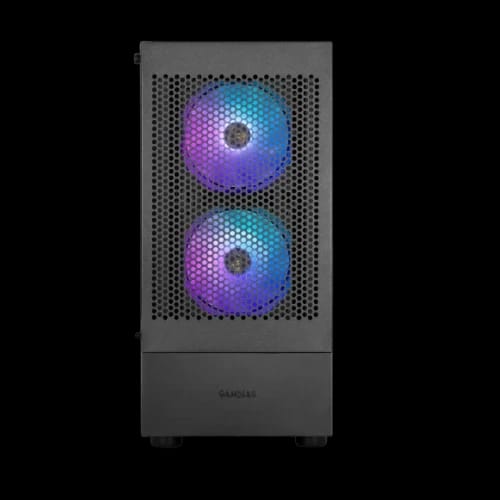

| Pre-Installed Fans | Front: 2 x 120mm ARGB Fans Rear: 1 x 120mm ARGB Fan |

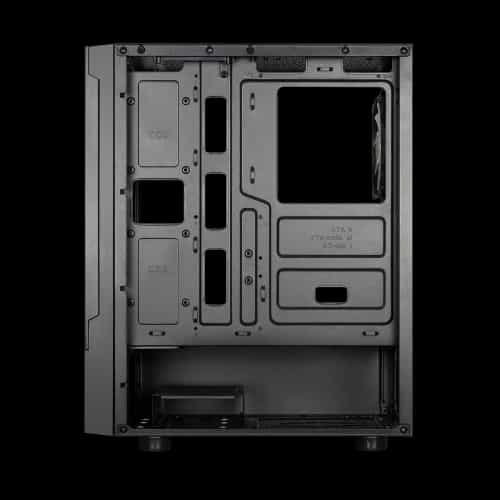

Drive Bays
| 3.5" Drive Bays | 2 or (1 × 2.5" + 1 × 3.5" in HDD Cage) |
| 2.5" Drive Bays | 2 |
I/O Ports

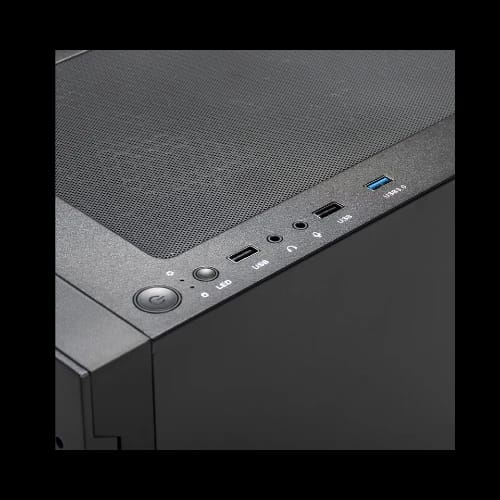

| Ports | USB 3.0 × 1, USB 2.0 × 2, HD Audio × 1, Fan LED Control × 1 |
Clearance
| Max CPU Cooler Height | 160 mm |
| Max GPU Length | 300 mm |
| Max PSU Length | 150 mm |
| Top Liquid Cooler Limitation | RAM height < 31 mm |
Physical Specification
| Dimensions (L×W×H) | 363 × 210 × 447 mm |
| Net Weight | 4.72 kg / 10.38 lb |
Warranty
| Duration | No Warranty |
