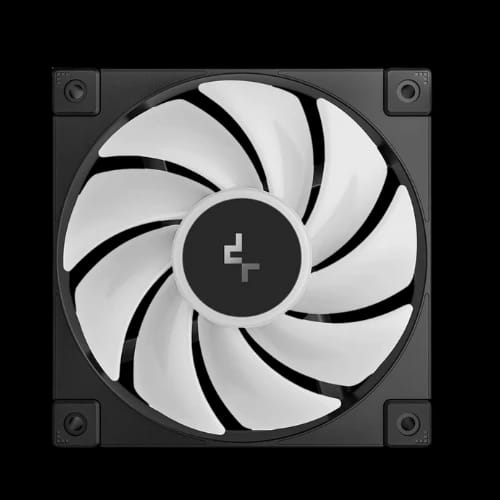

DeepCool FD12 ARGB 120mm Single Casing Fan (Black)
Key Features
- Deepcool FD12 ARGB
- 120mm Fan Size
- 400–2050 RPM Speed
- 63.6 CFM Airflow
- Hydro Bearing Type
- Addressable RGB LED
Out Of Stock
Share:
Technical Specifications
Fan Specifications
Power & Connectivity
Lighting & Design
Brand & Warranty
Warranty Information
Product Description
The Deepcool FD12 ARGB 120mm Single Casing Fan (Black) is built for PC builders who want balanced airflow, controlled noise, and synchronized addressable RGB lighting in a standard 120mm size, making it a strong option in the Deepcool Casing Fan lineup. Designed for modern systems, it blends PWM speed control, hydro bearing stability, and 5V ARGB support to maintain cooling performance while keeping the build clean and visually consistent. Whether you install it as an intake, exhaust, or radiator fan, this Casing Fan helps deliver steady airflow and a unified look for gaming and workstation setups, without adding unnecessary complexity.
Deepcool FD12 ARGB 120mm Fan Specifications and Performance Overview
The Deepcool FD12 ARGB uses a standard 120 × 120 × 25 mm frame, ensuring compatibility with most PC cases, radiators, and air-cooling setups. It operates across a wide PWM-controlled speed range, allowing the system to dynamically adjust cooling performance based on thermal demand.
The fan speed ranges from 400 to 2050 RPM (±10%), offering flexibility between quiet operation and higher airflow scenarios. At peak performance, the fan delivers 63.6 CFM of airflow, supporting efficient heat dissipation for components such as CPUs, GPUs, and VRM zones. With an air pressure rating of 2.56 mmAq, it is well-suited for restricted airflow environments, including radiator mounting or dense case layouts.
Despite its performance range, the FD12 ARGB maintains a controlled acoustic profile, with a maximum noise level of ≤26.9 dB(A). This balance makes it appropriate for users who prioritize cooling efficiency while keeping overall system noise within reasonable limits.
Fan Design, Bearing Type, and Acoustic Stability
At the core of the Deepcool FD12 ARGB is a hydro bearing, selected for consistent rotation, reduced friction, and long-term reliability. Hydro bearings are commonly used in modern PC fans to support smoother operation and stable performance across extended usage periods.
The fan’s design emphasizes rotational stability across its speed range, helping reduce vibration and maintain consistent airflow output. Combined with PWM control, the bearing system allows the fan to ramp up or down smoothly without abrupt noise spikes.
With a total weight of 166 g, the fan maintains structural rigidity while remaining easy to install on cases, radiators, or fan hubs. The black frame design ensures visual neutrality, allowing the ARGB lighting to stand out without clashing with other system components.

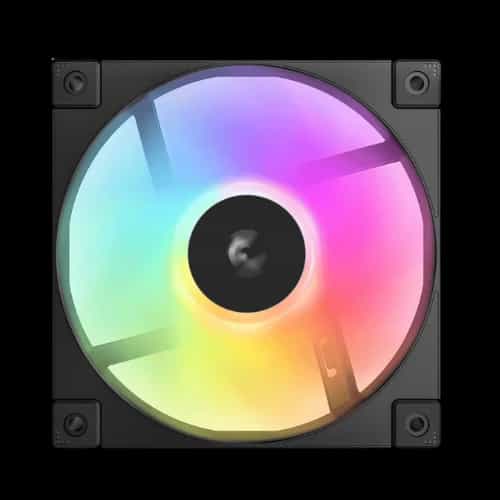

Addressable RGB Lighting and Visual Integration
The Deepcool FD12 ARGB features addressable RGB LED lighting, powered through a 3-pin (+5V-D-G) connector, making it compatible with standard 5V ARGB headers commonly found on modern motherboards and controllers.
This ARGB configuration allows for individual LED control, enabling synchronized lighting effects across supported components such as fans, CPU coolers, and light strips. The lighting system operates independently from the fan motor, with a dedicated light voltage of 5 VDC and light power consumption of 1.05 W.
The black fan housing provides a clean contrast for RGB effects, helping colors appear more defined when installed in tempered glass cases or open-frame builds. For users building visually coordinated systems, the FD12 ARGB integrates easily into existing lighting ecosystems without requiring proprietary connectors.
Power Efficiency and Electrical Specifications
From an electrical standpoint, the Deepcool FD12 ARGB is designed to maintain low power consumption while delivering consistent performance. The fan operates at 12 VDC, drawing 0.13 A of current, with a total fan power rating of 1.56 W.
This efficient power profile allows multiple FD12 ARGB fans to be installed in a single system without placing unnecessary load on fan headers or power distribution hubs. The separation of fan and lighting power ensures stable operation, even when ARGB effects are active.
The fan uses a 4-pin PWM connector, enabling precise speed control through motherboard BIOS settings or supported software utilities. This allows builders to define custom fan curves that balance cooling needs with noise preferences.
Deepcool FD12 ARGB Cooling Benefits for Real-World Builds
The FD12 ARGB is suitable for a wide range of PC configurations due to its balanced airflow and pressure characteristics. Its airflow rating supports general case ventilation, while the air pressure capability allows it to perform effectively on radiators or behind dust filters.
Typical use scenarios include:
- Front or top intake fans for improved airflow circulation
- Rear exhaust fans to remove hot air efficiently
- Radiator-mounted fans for liquid cooling setups
- Supplemental airflow for GPU-focused builds
The wide RPM range enables the fan to operate quietly during idle or light workloads and scale up during sustained gaming or productivity tasks. This adaptability helps maintain thermal stability across different system loads.
Compatibility with Modern PC Components and Cases
Thanks to its standard dimensions and connector formats, the Deepcool FD12 ARGB is compatible with most ATX, micro-ATX, and mini-ITX cases that support 120mm fans. The 25mm thickness ensures proper clearance in standard mounting positions without interfering with adjacent components.
The 4-pin PWM connector integrates seamlessly with modern motherboards, while the 5V ARGB connector aligns with commonly used addressable RGB headers. This makes the fan suitable for builders upgrading existing systems or assembling new builds with synchronized lighting goals.
Because the fan does not rely on proprietary connectors, it can be paired with a wide range of fan hubs, splitters, and ARGB controllers, offering flexibility in cable management and system layout.
Build Quality, Brand Support, and Warranty Coverage
The Deepcool FD12 ARGB is backed by a 3-year warranty, reflecting a focus on durability and long-term reliability. This coverage provides assurance for users installing the fan in systems intended for extended daily use, such as gaming PCs or professional workstations.
The combination of hydro bearing technology, controlled power draw, and standardized connectors contributes to consistent operation over time. For builders who prioritize stability and predictable performance, the warranty support adds an extra layer of confidence.
Why Choose the Deepcool FD12 ARGB 120mm Single Casing Fan (Black)
The Deepcool FD12 ARGB offers a balanced combination of airflow performance, acoustic control, and addressable RGB lighting without introducing unnecessary complexity. Its specifications support a wide range of cooling scenarios, while its electrical efficiency and standard connectors simplify installation.
For users seeking a 120mm fan that delivers both functional cooling and clean visual integration, the FD12 ARGB fits well into modern PC builds focused on performance, aesthetics, and reliability.
Deepcool FD12 ARGB 120mm Single Casing Fan (Black) – Buy Deepcool FD12 ARGB PWM ARGB Cooling Fan
If you are upgrading airflow or planning a new build, explore matching PC Components to complete your setup with the Deepcool FD12 ARGB 120mm Single Casing Fan (Black). It delivers a dependable mix of airflow, controlled noise, and 5V ARGB lighting, backed by PWM speed control, hydro bearing stability, and a 3-year warranty for long-term use. For more cooling and build options from DEEPCOOL across multiple PC categories, order from PCB Store and finish your cooling setup with confidence.
Delivery Charge Info
Inside Dhaka: ৳80
Outside Dhaka: ৳130
FAQs
What is the Deepcool FD12 ARGB 120mm Single Casing Fan, and who is it designed for?
The Deepcool FD12 ARGB is a 120mm PWM casing fan built for PC builders who want balanced airflow, low noise, and synchronized ARGB lighting in gaming PCs, workstations, and standard ATX to mini-ITX builds.
What RPM range does the Deepcool FD12 ARGB support?
The Deepcool FD12 ARGB operates between 400 and 2050 RPM (±10%), allowing quiet operation during light workloads and higher performance during intensive tasks through dynamic PWM-based speed adjustment.
How much airflow does the Deepcool FD12 ARGB deliver at peak performance?
At peak, the Deepcool FD12 ARGB delivers 63.6 CFM, making it effective for general case ventilation and heat dissipation across CPUs, GPUs, and VRM zones.
What type of bearing does the FD12 ARGB use?
The FD12 ARGB uses a hydro bearing, which reduces friction, minimizes vibration, and ensures stable, consistent performance over extended usage periods.
What is the maximum noise level of the FD12 ARGB during operation?
The FD12 ARGB operates at a maximum of ≤26.9 dB(A), maintaining a quiet acoustic profile even at higher speeds, ideal for noise-sensitive builds.
Is the FD12 ARGB compatible with 5V ARGB headers on modern motherboards?
Yes, the FD12 ARGB uses a 3-pin (+5V-D-G) connector, fully compatible with standard 5V ARGB motherboard headers, enabling individual LED control and synchronized lighting effects.
What air pressure rating does the FD12 ARGB offer for radiator mounting?
The FD12 ARGB has an air pressure rating of 2.56 mmAq, making it well-suited for radiators, dust filters, and dense case layouts where airflow resistance is present.
How much power does the FD12 ARGB fan consume?
The FD12 ARGB runs at 12 VDC, drawing 0.13 A with a 1.56 W fan power rating. ARGB lighting adds 1.05 W at 5 VDC, keeping total power consumption minimal.
Can the FD12 ARGB be used as both an intake and exhaust fan?
Yes, the FD12 ARGB works as a front intake, rear exhaust, or radiator-mounted fan, offering flexible installation across multiple positions in any standard PC case.
Does the FD12 ARGB require proprietary connectors or controllers?
No, the FD12 ARGB uses standard 4-pin PWM and 3-pin 5V ARGB connectors, compatible with most fan hubs, splitters, and ARGB controllers without any proprietary ecosystem dependency.
How does the 4-pin PWM connector on the FD12 ARGB enable precise speed control?
The 4-pin PWM connector allows motherboard BIOS or software utilities to define custom fan curves, automatically adjusting speed based on real-time temperatures to balance cooling and noise.
What warranty coverage comes with the FD12 ARGB casing fan?
The FD12 ARGB is backed by a 3-year warranty, offering long-term reliability assurance for daily-use systems including gaming PCs and professional workstations.
What are the physical dimensions and weight of the FD12 ARGB?
The FD12 ARGB measures 120 × 120 × 25 mm and weighs 166 g, fitting standard mounting positions in most cases and radiators without clearance issues.
How does the black frame design enhance the visual appeal of the FD12 ARGB in a build?
The black housing provides a neutral contrast that makes ARGB lighting appear more vivid, especially in tempered glass or open-frame builds with dark or multi-color lighting themes.
Where can you buy the Deepcool FD12 ARGB 120mm Single Casing Fan in Bangladesh?
The Deepcool FD12 ARGB 120mm Single Casing Fan (Black) is available at PCB Store, offering warranty-backed purchasing alongside a wide range of PC components for complete build setups.
