Technical Specifications
General Info

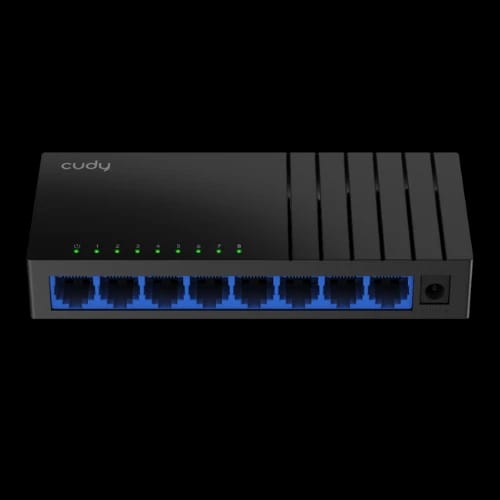

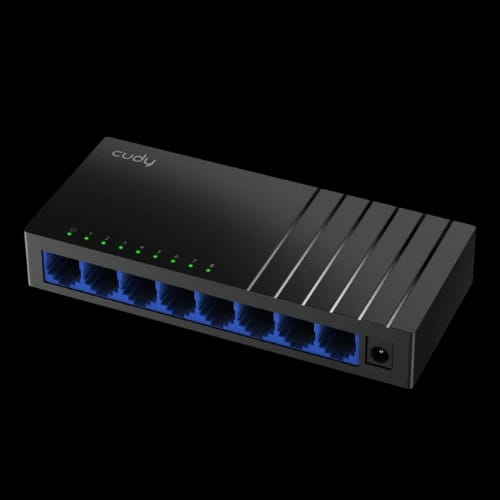

| Model & Type | GS108D, Desktop Switch with ABS Plastic Casing |
| Ports | 8 × 10/100/1000 Mbps Auto-Negotiation RJ45 Ports |
Network Standards
| Standards | 802.3i, 802.3u, 802.3ab, 802.3x; Cat3–6 up to 170m |
Performance
| Capacity & Rate | 16 Gbps Switching Capacity, 11.904 Mpps Forwarding Rate |
| Buffer & MAC | 4 Mbit Packet Buffer, 8K MAC Table, 15 KB Jumbo Frame |
Power & Efficiency
| Input & Saving | DC 5V / 0.55A, 2.75W Max, Auto Power-off Idle Ports |
LED Indicators
| LEDs | Power LED, Link/Activity LED |
Design & Installation
| Size & Mount | 138×61.5×24 mm, 0.15 kg, Desktop / Wall-Mount |
Operating Environment
| Temp & Humidity | 0℃–40℃ (Op), -40℃–75℃ (Storage), 0–100% RH (Op) |
Transfer Method
| Switching | Store-and-Forward Architecture |
Warranty
| Warranty | 2 Year |
