Technical Specifications
General Information

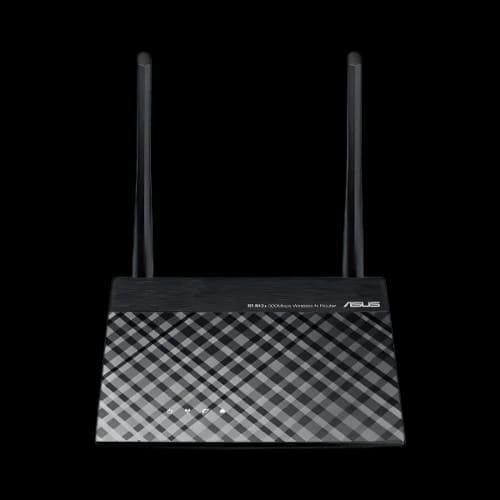

| Product Model | ASUS RT-N12+ |
| Product Category | Network And Router |
| Product Type | Wireless Router |
Wireless Performance
| Wireless Standard | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency Band | 2.4 GHz |
| Data Rate | Up to 300 Mbps |
| Antenna | 2 × Fixed Antenna |
Network & Connectivity
| WAN Port | 1 × WAN |
| LAN Ports | 4 × LAN |
| Supported Protocols | IPv4, IPv6 |
| Internet Connection Types | Automatic IP, Static IP, PPPoE, PPTP, L2TP |
Security & Encryption
| Encryption Methods | 64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK |
| Enterprise Security | WPA-Enterprise, WPA2-Enterprise |
| WPS Support | Yes |
Management Features
| Network Tools | UPnP, IGMP v1/v2/v3 |
| Management Functions | DNS Proxy, NTP Client, DDNS |
| Port Features | Port Forwarding, Port Trigger |
| Network Mode | DMZ Support |
Buttons & Interface
| Hardware Buttons | WPS Button, Power Button |
Power
| AC Input | 110V–240V (50–60Hz) |
| DC Output | 12V, Max 0.5A |
Physical Details
| Dimensions | 146 × 111 × 24 mm |
| Color | Black |
Warranty
| Manufacturer Warranty | 2 Years |
