Technical Specifications
Graphics Engine

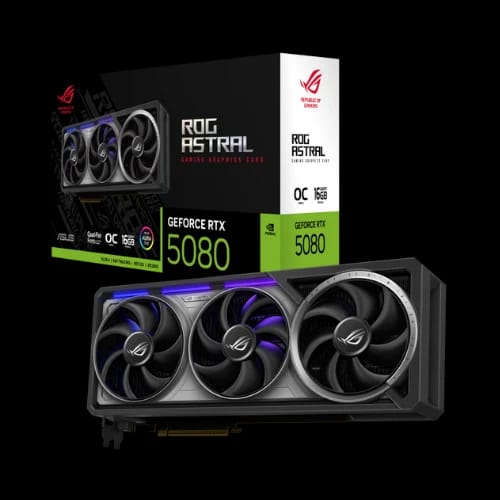

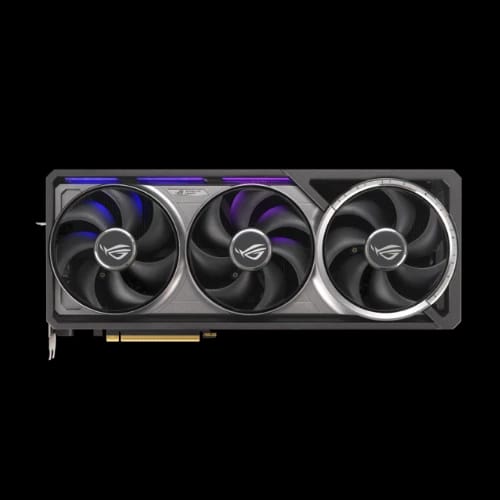

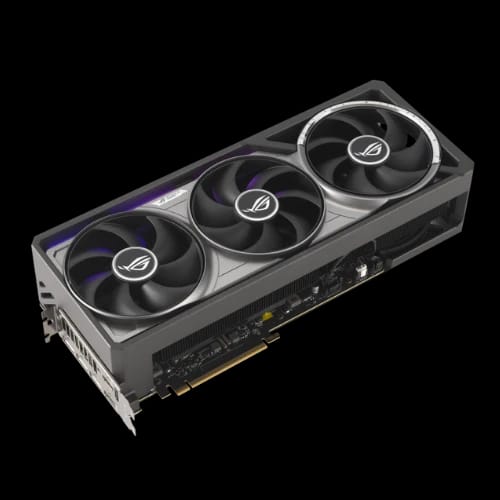

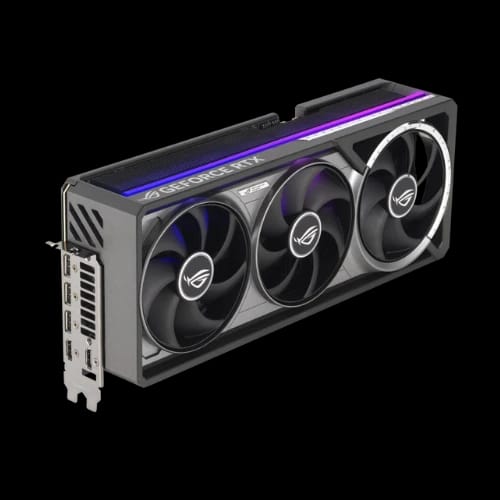

| Model | ROG Astral GeForce RTX™ 5080 16GB GDDR7 OC Edition |
| GPU | NVIDIA GeForce RTX 5080 |
| AI Performance | 1801 TOPs |
| Bus Standard | PCI Express 5.0 |
| OpenGL | OpenGL 4.6 |
Video Memory
| Memory Type | GDDR7 |
| Memory Size | 16GB |
| Memory Speed | 30 Gbps |
| Memory Interface | 256-bit |
| Resolution | Digital Max Resolution: 7680 x 4320 |
Clock Speeds
| OC Mode | 2790 MHz |
| Default Mode | 2760 MHz |
Core Specifications
| CUDA Cores | 10,752 |
| AI Performance | 1801 TOPs |
Display & Interface
| HDMI | 2 × Native HDMI 2.1b |
| DisplayPort | 3 × Native DisplayPort 2.1b |
| HDCP Support | Yes, HDCP 2.3 |
| Maximum Display Support | 4 |
| NVLink / Crossfire Support | No |
Power & Thermal
| Recommended PSU | 850W |
| Power Connectors | 1 × 16-pin |
| Slot | 3.8 Slot |
| AURA SYNC | ARGB |
Accessories Included
| Manual | Speedsetup Manual |
| Support | ROG Graphics Card Holder |
| Cable | Adapter Cable (1-to-3) |
| Others | ROG Velcro Hook & Loop, ROG Magnet, ROG Graphics Card Keycap, ROG PCB Ruler, Thank You Card |
Software
| Utilities | ASUS GPU Tweak III, MuseTree |
| Drivers | GeForce Game Ready Driver, Studio Driver |
| Download | Available from ASUS Support Site |
Warranty Information
| Warranty | 3 Years |
