Technical Specifications
General Specifications

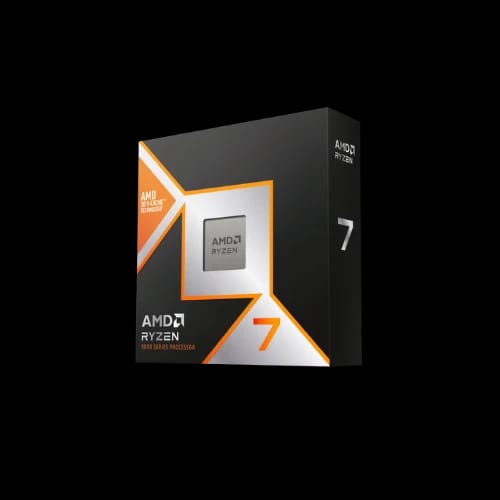

| Processor Name | AMD Ryzen™ 7 9850X3D |
| Series | Ryzen 9000 Series |
| Architecture | Zen 5 |
Core & Performance
| CPU Cores | 8 |
| Threads | 16 |
| Base Clock | 4.7 GHz |
| Max Boost Clock | Up to 5.6 GHz |
| Default TDP | 120 W |
Cache Configuration
| L1 Cache | 640 KB |
| L2 Cache | 8 MB |
| L3 Cache | 96 MB |
Memory Support
| Memory Type | DDR5 UDIMM |
| Memory Channels | Dual Channel |
| Max Memory Capacity | 192 GB |
| Max Memory Speed | DDR5-5600 |
| ECC Support | Yes (Motherboard dependent) |
Platform & Expansion
| CPU Socket | AM5 |
| Supported Chipsets | A620, B650/B650E, X670/X670E, X870/X870E, B840, B850 |
| PCIe Version | PCIe® 5.0 |
| PCIe Lanes (Usable) | 24 |
Graphics Capabilities
| Integrated Graphics | AMD Radeon™ Graphics |
| Graphics Core Count | 2 |
| Graphics Frequency | 2200 MHz |
| Display Output | USB-C DP Alt Mode |
Thermal & Power
| Max Operating Temp | 95 °C |
| Recommended Cooling | Liquid Cooler |
Warranty Information
| Warranty | 03 Years |
